LEADYO 12V 100ah Lithium Iron Phosphate Battery Lifepo4 Smart LCD Display

Minimum Order Quantity : 1 Price : Negotiable
Packaging Details : standard export carton Delivery Time : 1-2weeks for samples; 3-4weeks for mass production
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online Supply Ability : 60Mwh
Place of Origin: China Brand Name: LEADYO
Certification: CE,MSDS,UN38.3 Model Number: LP12V100

Detail Information

Nominal Voltage: 12.8V Nominal Capacity: 100Ah
Weight: 10.5kg Dimension: 330*175*210mm
Continuous Current: 100A Peak Current: 300A
Case: ABS Case Monitoring: Smart LCD Display
Warranty: 2 Years
High Light:

LEADYO 12V 100ah Lithium Iron Phosphate Battery

,

Lifepo4 12V 100ah Lithium Iron Phosphate Battery

,

100ah Lifepo4 Battery 12v

Product Description

Smart LCD lifepo4 battery 12v 100ah lithium iron phosphate battery





We can provide you:

  • 1-32S Lithium PCM BMS board with max 250A continuous discharge current;
  • Deep cycle LiFePo4 batteries, 12V LiFepo4 3-400Ah, with equal KWH for 3v...24V 36v 48V...up to 96V LiFepo4 optional;
  • Starter LiFepo4 12V 40Ah 60Ah 80Ah 100Ah and 24V 100Ah Batteries for cranking purpose;
  • Advantage cells 3.2V 202Ah prismatic lifepo4 cell



ELECTRICAL SPECIFICATIONS   MECHANICAL SPECIFICATIONS
Nominal Voltage 12.8V   Terminal Type M8
Nominal Capacity 100Ah   Weight 10.5kg
Nominal Energy 1280Wh   Case Dimension(L*W*H) 330*175*210mm
Internal Resistance ≤30 @50% SOC   Case Type ABS
Capacity @20A: 300minutes(5hours)   Cell type / Chemistry LiFePO4
Self Discharge 5% /per month   LCD or Bluetooth Function Optional
Maximum In Series  4PCS   BMS:low voltage,high voltage,over temperature,
Maximum In Parallel No limit   Over current,short-circuit protection .etc
Discharge Current and Voltage Specifications   Charge Current and Voltage Specifications
MAX Continuous Discharge Current 100A   Max Charge Current 100A
Peak Current 300A   Recommended Charge Current 20A - 50A
Discharge pulse current 500±50A (31±10ms)   End of Charge voltage 14.4V±0.2V
BMS Low Voltge Cut-off 10V    End of discharge voltage 10V
Short Circuit Protection 200-800 µs Auto recover or charge release   Balancing Voltage 3.6V±0.05v pc
Temperature Ranges   COMPLIANCE SPECIFICATIONS
Discharge Temperature -20+65   Certifications CE for Battery Pack
Charge Temperature -20+45   UL1642 & IEC62133 & BIS for cells
Storage Temperature Range -20+45
BMS High Temperature Protection 90   Shipping classification UN 3480
Battery High Temperature Protection 60

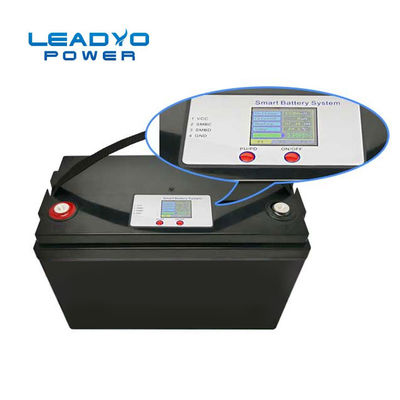

LEADYO 12V 100ah Lithium Iron Phosphate Battery Lifepo4 Smart LCD Display 0

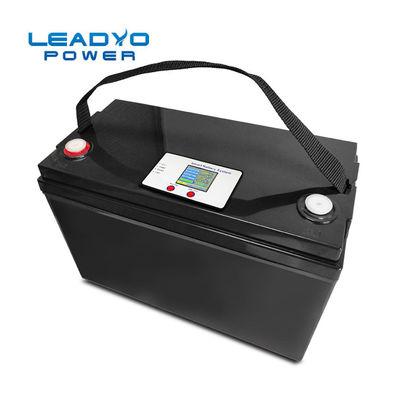

LEADYO 12V 100ah Lithium Iron Phosphate Battery Lifepo4 Smart LCD Display 1

FAQ



1. Are you factory or trade company?
We ara leading battery manufacturer in China,Is a high-tech enterprise, specializing in R&D and marketing of Lithium rechargeable battery products. Our Lithium battery products are widely used in Marine boat /RV/ Camping cart/AGVGolf-cartelectric-motorcycle/Solar energy storage systemelectric vehicleselectric tools/UPS backupTelecom towersMedical equipment and etc.

2.What is your main product?
12V-48V LiFePO4 Batteries (To Replace lead acid batteries)
* 12V 24V LiFePO4 Batteries for RV/ Marine application
* 12V Automatic Start-Stop LiFePO4 Battery
* 48V Golf carts Batteries
* Solar street light system
* 12V / 24V Floor machine batteries.
* Other solar power battery system
* 1-32S Max 250A BMS/PCM
* battery charger
* Lithium ion cells, LiFePo4 cells and LTO cells


3.How to get a quote?
Please contact with us sales5@leadyo-battery.com

4.When you delivery order?
Normally 7-15 days for samples order , it can be negotiated based on exact order quantity and schedule.

5.Do you accept OEM?
Yes sure, can customized your brand battery
