LiFePO4 12V 20ah Lithium Ion Golf Trolley Batteries With T Bar Connector

Minimum Order Quantity : 1 Price : Negotiable
Packaging Details : standard export carton Delivery Time : 1-2weeks for samples; 3-4weeks for mass production
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online Supply Ability : 60Mwh
Place of Origin: China Brand Name: LEADYO
Certification: CE,MSDS Model Number: LP12V020

Detail Information

Nominal Voltage: 12.8V Nominal Capacity: 20Ah
Weight: 2.2kg Size: 180*77*170mm
Continuous Charge Current: 20A Peak Current: 50A
Case: ABS Connector: T-bar
Package: With Bag
High Light:

20ah Lithium Ion Golf Trolley Batteries

,

LiFePO4 Lithium Ion Golf Trolley Batteries

,

12v 20ah Golf Trolley Battery

Product Description

LiFePO4 12v 20ah lithium ion golf trolley batteries with T-bar connector



12V 20Ah is equipped with A grade 3.2V LifePo4 Cylindrical battery cells and high-quality BMS. This 12V 20AH Lithium Ion Battery is plug and play for starting or deep cycle applications including Marine, RV, Golf, Solar, Off Grid, Propulsion and other applications requiring a lightweight lithium battery to replace Lead Acid, Gel or AGM Batteries.



ELECTRICAL SPECIFICATIONS   MECHANICAL SPECIFICATIONS
Nominal Voltage 12.8V   Terminal Type T3
Nominal Capacity 20Ah   Weight 2.2kg
Nominal Energy 256Wh   Case Dimension(L*W*H) 180*77*170mm
Internal Resistance ≤30 @50% SOC   Case Type ABS
Capacity @4A: 300minutes(5hours)   Cell type / Chemistry LiFePO4
Self Discharge 5% /per month   LCD or Bluetooth Function Optional
Maximum In Series 4PCS   BMS:low voltage,high voltage,over temperature,
Maximum In Parallel No limit   Over current,short-circuit protection .etc
Discharge Current and Voltage Specifications   Charge Current and Voltage Specifications
MAX Continuous Discharge Current 20A   Max Charge Current 20A
Peak Current 40A   Recommended Charge Current 4A - 10A
Discharge pulse current 50±5A (31±10ms)   End of Charge voltage 14.4V±0.2V
BMS Low Voltge Cut-off 10V   End of discharge voltage 10V
Short Circuit Protection 200-800 µs Auto recover or charge release   Balancing Voltage 3.6V±0.05v pc
Temperature Ranges   COMPLIANCE SPECIFICATIONS
Discharge Temperature -20+65   Certifications CE for Battery Pack
Charge Temperature -20+45   UL1642 & IEC62133 & BIS for cells
Storage Temperature Range -20+45
BMS High Temperature Protection 90   Shipping classification UN 3480
Battery High Temperature Protection 60

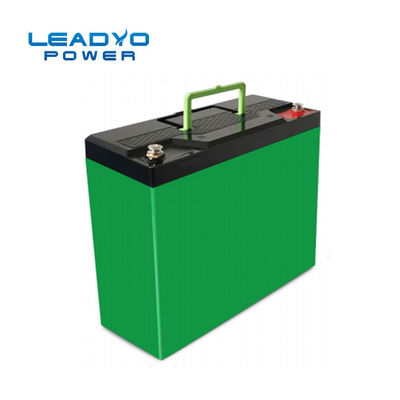

LiFePO4 12V 20ah Lithium Ion Golf Trolley Batteries With T Bar Connector 0

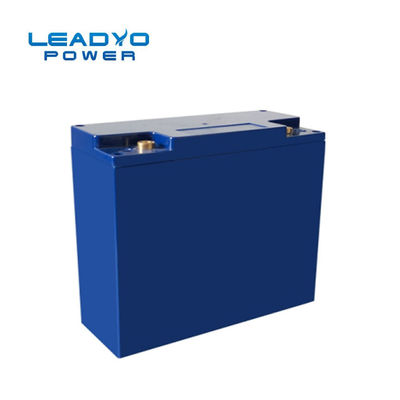

LiFePO4 12V 20ah Lithium Ion Golf Trolley Batteries With T Bar Connector 1

FAQ



1. Are you factory or trade company?
We ara leading battery manufacturer in China,Is a high-tech enterprise, specializing in R&D and marketing of Lithium rechargeable battery products.

2.What is your main product?
12V-48V LiFePO4 Batteries (To Replace lead acid batteries)
* 12V 24V LiFePO4 Batteries for RV/ Marine application
* 12V Automatic Start-Stop LiFePO4 Battery
* 48V Golf carts Batteries
* Solar street light system
* 12V / 24V Floor machine batteries.
* Other solar power battery system
* 1-32S Max 250A BMS/PCM
* battery charger
* Lithium ion cells, LiFePo4 cells and LTO cells


3.How to get a quote?
Please contact with us sales5@leadyo-battery.com

4.When you delivery order?
Normally 7-15 days for samples order , 20-35days for bulk order

5.Do you accept OEM?
Yes OEM and ODM both available, and can with your logo on the battery.
