Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,UKCA
Model Number: LP48V60
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 15-45 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Nominal Voltage: |
51.2V |
Nominal Capacity: |
60Ah |
Weight: |
30kg |
Dimension: |
400*198*235mm |
Current: |
60A |
With Handler: |
YES |
Case: |
Metal |
Colors: |
Customized Colors |
Application: |
Golf Carts |
Nominal Voltage: |
51.2V |
Nominal Capacity: |
60Ah |
Weight: |
30kg |
Dimension: |
400*198*235mm |
Current: |
60A |
With Handler: |
YES |
Case: |
Metal |
Colors: |
Customized Colors |
Application: |
Golf Carts |

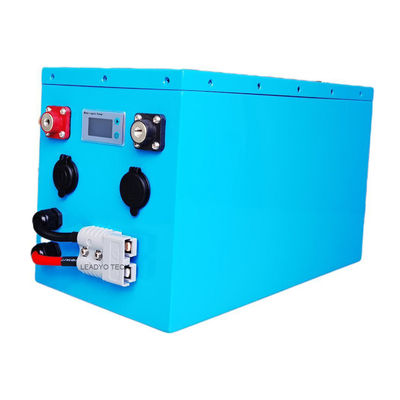

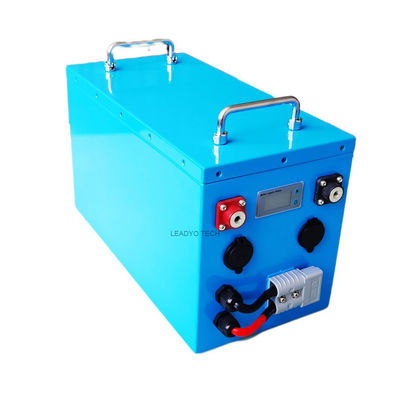

Deep cycle 48V 60Ah club cart lithium lon golf cart batteries
48V lithium golf cart batteries offer many benefits including some serious weight savings, more efficient battery chemistry, a larger number of charging/discharging cycles, faster charging, longer range, etc.
However, the price of 48V lithium golf cart batteries is higher than the price of the 48V lead-acid golf cart battery pack - at least in the beginning. In the long run, 48V lithium batteries save both money and time ...
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 51.2V | Terminal Type | M8 | |
| Nominal Capacity | 60Ah | Weight | 30kg | |
| Nominal Energy | 3072Wh | Case Dimension(L*W*H) | 400*198*235mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | Metal | |
| Capacity | @14A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | NO | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 60A | Max Charge Current | 60A | |
| Peak Current | 150A | Recommended Charge Current | 15A - 30A | |
| Discharge pulse current | 180±30A (31±10ms) | End of Charge voltage | 57.6V±0.2V | |
| BMS Low Voltge Cut-off | 40V | End of discharge voltage | 40V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v/ cell | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
