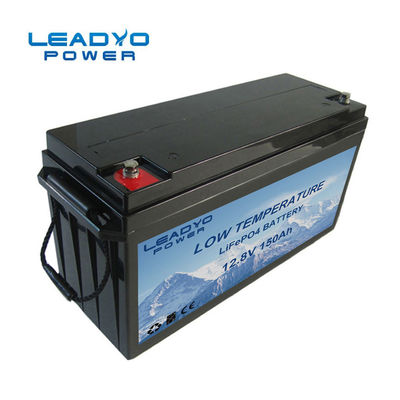

Cold Weather Low Temperature LiFePO4 Battery 12V 150Ah ABS Case

Product Details

Place of Origin: China

Brand Name: LEADYO

Certification: UN38.3, CE,MSDS,UKCA

Model Number: LP12V150

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiable

Packaging Details: UN3480 Standard Export

Delivery Time: 15-45 Days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online

Supply Ability: 60Mwh

Get Best Price
Highlight: 12V 150Ah Cold Weather Low Temperature LiFePO4 Lithium Ion Battery
Nominal Voltage:
12.8V
Nominal Capacity:
150Ah
Weight:
20kg
Dimension:
480*170*240mm
Continuous Current:
150A
Auto Heating:
On Charging Stage
Case:
ABS
Nominal Voltage:
12.8V
Nominal Capacity:
150Ah
Weight:
20kg
Dimension:
480*170*240mm
Continuous Current:
150A
Auto Heating:
On Charging Stage
Case:
ABS
Cold Weather Low Temperature LiFePO4 Battery 12V 150Ah ABS Case



12V 150Ah Cold Weather Low Temperature LiFePO4 Lithium Ion Battery



Lithium Iron Phosphate Battery 12.8V 150Ah



Nominal Voltage 12.8V

Nominal Capacity 150 Ah

Capacity @ 30A 300 min

Energy 1920 Wh

Resistance ≤30 mΩ @ 50%

SOC Self Discharge <3% / Month

Balancing function

With Smart BMS has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.



Features:



Leadyo Low-Temperature lithium batteries are cold-weather rated, designed for Winter’s cold climates. The batteries can safely charge and discharge at temperatures as low as -20°C (-4°F).keep longer life span for your lifepo4 battery.







ELECTRICAL SPECIFICATIONS   MECHANICAL SPECIFICATIONS
Nominal Voltage 12.8V   Terminal Type M8
Nominal Capacity 150Ah   Weight 20kg
Nominal Energy 1920Wh   Case Dimension(L*W*H) 480*170*240mm
Internal Resistance ≤30 @50% SOC   Case Type ABS
Capacity @20A: 300minutes(5hours)   Cell type / Chemistry LiFePO4
Self Discharge 5% /per month   LCD or Bluetooth Function Optional
Maximum In Series 4PCS   BMS:low voltage,high voltage,over temperature,
Maximum In Parallel No limit   Over current,short-circuit protection .etc
Discharge Current and Voltage Specifications   Charge Current and Voltage Specifications
MAX Continuous Discharge Current 150A   Max Charge Current 150A
Peak Current 500A   Recommended Charge Current 30A - 75A
Discharge pulse current 600±50A (31±10ms)   End of Charge voltage 14.4V±0.2V
BMS Low Voltge Cut-off 10V   End of discharge voltage 10V
Short Circuit Protection 200-800 µs Auto recover or charge release   Balancing Voltage 3.6V±0.05v pc
Temperature Ranges   COMPLIANCE SPECIFICATIONS
Discharge Temperature -20+65   Certifications CE for Battery Pack
Charge Temperature -20+45   UL1642 & IEC62133 for cells
Storage Temperature Range -20+45
BMS High Temperature Protection 90   Shipping classification UN 3480
Battery High Temperature Protection 60



Cold Weather Low Temperature LiFePO4 Battery 12V 150Ah ABS Case 0



FAQ



Q. Do you have Blue-tooth communication with your batteries?
A: Yes, please let us know if you NEED to add Blue-tooth communication with the batteries. and YOU can rename your battery in the App.



Q:Do you have MOQ ?
A:No limited. Small order also welcome.More quantity has better price, we will check the best price for you.



Q: What is your term of payment?
A: We adopt T/T,Paypal,Alibaba payment way and so on. If order amount>10K usd, The payment term will be 30%T/T for deposit and thebalance before shipment



Q. If your lithium battery goes into protection mode, how do you wake it up?
A: Using lithium chargers to wake up the battery. The lithium charger wakes up the batteries automatically.
