Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,UKCA
Model Number: LP24V50
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 15-45 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Nominal Voltage: |
25.6V |
Nominal Capacity: |
50Ah |
Weight: |
10.5kg |
Dimension: |
330*175*215mm |
Max Charge Current: |
50A |
Max Discharge Current: |
50A |
CaseABS Case: |
ABS/Metal Case |
Ip Rating: |
IP66 |
Warranty: |
2 YEars |
Nominal Voltage: |
25.6V |
Nominal Capacity: |
50Ah |
Weight: |
10.5kg |
Dimension: |
330*175*215mm |
Max Charge Current: |
50A |
Max Discharge Current: |
50A |
CaseABS Case: |
ABS/Metal Case |
Ip Rating: |
IP66 |
Warranty: |
2 YEars |

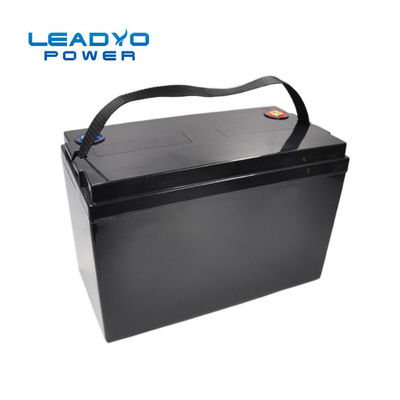

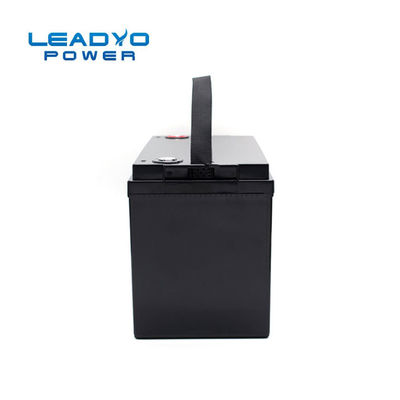

24V 50Ah Lithium Iron Phosphate (LiFePO4) Rechargeable Lithium Battery
Features:
Can With Bluetooth or RS485, RS2321,SMbus,I2C etc
Can make 4pcs in series
Parralle no limit
With balancing/Short circuit funtion
With CE,IP66,UN38.3 and MSDS.
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 25.6V | Terminal Type | M6 | |
| Nominal Capacity | 50Ah | Weight | 13kg | |
| Nominal Energy | 1280Wh | Case Dimension(L*W*H) | 330*175*210mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @10A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | 2PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 50A | Max Charge Current | 50A | |
| Peak Current | 100A | Recommended Charge Current | 10A - 25A | |
| Discharge pulse current | 180±30A (31±10ms) | End of Charge voltage | 28.8V±0.2V | |
| BMS Low Voltge Cut-off | 20V (2.0V±0.05v) pc) | Balancing current | Auto start | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
