Home > products > 12V Slimline Battery > Smart Bluetooth 200ah Slim Lithium Battery 12V Deep Cycle For RV 4WD

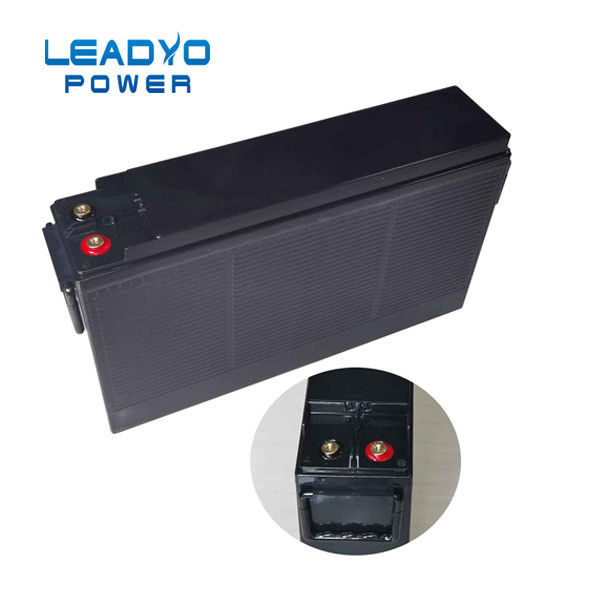

Smart Bluetooth 200ah Slim Lithium Battery 12V Deep Cycle For RV 4WD

Product Details

Place of Origin: China

Brand Name: LEADYO

Certification: UN38.3, CE,MSDS,UKCA

Model Number: LP12V200

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiable

Packaging Details: UN3480 Standard Export

Delivery Time: 15-45 Days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online

Supply Ability: 60Mwh

Get Best Price
Highlight: Smart Bluetooth 12 Volt 200Ah Slimline Deep Cycle Lithium Batteries
Nominal Voltage:
12.8V
Nominal Capacity:
200Ah
Weight:
21kg
SizeSize:
561*125*316mm
Cont's Current:
200A
Application:
RV,4WD, Camper, Marine
Series:
Can Up To 48V
Nominal Voltage:
12.8V
Nominal Capacity:
200Ah
Weight:
21kg
SizeSize:
561*125*316mm
Cont's Current:
200A
Application:
RV,4WD, Camper, Marine
Series:
Can Up To 48V
Smart Bluetooth 200ah Slim Lithium Battery 12V Deep Cycle For RV 4WD



Smart Bluetooth 12 Volt 200Ah Slimline deep cycle lithium batteries





Features:

  1. New Grade A brand Cells
  2. With custom-made BMS for the battery with full protection
  3. Internal cell balancing - Automatically balances cells
  4. Only 125mm thickness, easy installation behind the rear seat of dual cab utes
  5. Can with Bluetooth monitoring status of the battery.
  6. Can with your label on your battery.

Our Slimline batteries have been designed to go where no other battery can go. Great for your 4X4 vehicle,Caravan,camper-van and they're even suitable for marine use. the slimline batteries are buit to last, with a completely sealed and robust ABS container making these batteries an outback proof product.





ELECTRICAL SPECIFICATIONS   MECHANICAL SPECIFICATIONS
Nominal Voltage 12.8V   Terminal Type M8
Nominal Capacity 200Ah   Weight 21kg
Nominal Energy 2560Wh   Case Dimension(L*W*H) 561*125*316mm
Internal Resistance ≤30 @50% SOC   Case Type ABS
Capacity @40A: 300minutes(5hours)   Cell type / Chemistry LiFePO4
Self Discharge 5% /per month   LCD or Bluetooth Function Optional
Maximum In Series 4 PCS   BMS:low voltage,high voltage,over temperature,
Maximum In Parallel No limit   Over current,short-circuit protection .etc
Discharge Current and Voltage Specifications   Charge Current and Voltage Specifications
MAX Continuous Discharge Current 200A   Max Charge Current 200A
Peak Current 500A   Recommended Charge Current 40A - 100A
Discharge pulse current 700±50A (31±10ms)   End of Charge voltage 14.4V±0.2V
BMS Low Voltge Cut-off 10V    End of discharge voltage 10V
Short Circuit Protection 200-800 µs Auto recover or charge release   Balancing Voltage 3.6V±0.05v pc
Temperature Ranges   COMPLIANCE SPECIFICATIONS
Discharge Temperature -20+65   Certifications CE for Battery Pack
Charge Temperature -20+45   UL1642 & IEC62133 for cells
Storage Temperature Range -20+45
BMS High Temperature Protection 90   Shipping classification UN 3480
Battery High Temperature Protection 60









Smart Bluetooth 200ah Slim Lithium Battery 12V Deep Cycle For RV 4WD 0





FAQ



1. Are you factory or trade company?
We ara leading battery manufacturer in China,Is a high-tech enterprise, specializing in R&D and marketing of Lithium rechargeable battery products.

2.What is your main product?
1-32S Lithium PCM BMS board with max 250A continuous discharge current;
Deep cycle lithium batteries, 12V LiFepo4 3-1000Ah, with equal KWH for 3v...24V 36v 48V...up to 96V LiFepo4 optional;
Custom Battery Packs
Starter LiFepo4 12V 40Ah 60Ah 80Ah 100Ah -1200CCA
Advantage cells: NMC/lifepo4/LTO cell
Lithium battery charger

3.How to get a quote?
Please contact with us sales5@leadyo-battery.com / whatsapp +86 18825284421

4.When you delivery order?
Normally 7-15 days for samples order , it can be negotiated based on exact order quantity and schedule.

5.Do you accept OEM?
OEM and ODM both available
