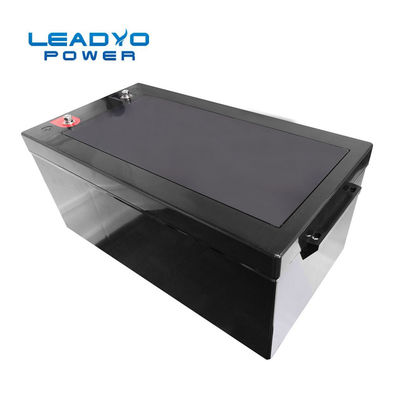

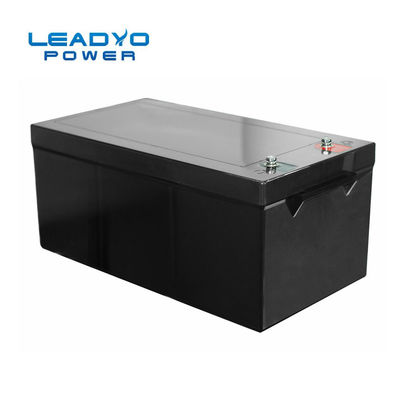

24V 100Ah Lithium Cranking Batteries 1000CCA Automotive LiFePO4 Starting Battery

Product Details

Place of Origin: China

Brand Name: LEADYO

Certification: UN38.3, CE,MSDS,UKCA

Model Number: LP24V100-ST

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiable

Packaging Details: UN3480 Standard Export

Delivery Time: 15-45 Days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online

Supply Ability: 60Mwh

Get Best Price
Highlight: 24V 100Ah Cranking 1000CCA Automotive LiFePO4 Starting Battery
Nominal Voltage:
25.6V
Nominal Capacity:
100Ah
Weight:
14kg
Dimension:
525*234*220mm
Max Charge Current:
50A
Max Discharge Current:
100A
CCA:
1000A
Terminal:
M8
Group Size Optional:
24' 27' 31' 34' Etc
Nominal Voltage:
25.6V
Nominal Capacity:
100Ah
Weight:
14kg
Dimension:
525*234*220mm
Max Charge Current:
50A
Max Discharge Current:
100A
CCA:
1000A
Terminal:
M8
Group Size Optional:
24' 27' 31' 34' Etc
24V 100Ah Lithium Cranking Batteries 1000CCA Automotive LiFePO4 Starting Battery

24V 100Ah cranking 1000CCA Automotive LiFePO4 Starting Battery



Light weight 12.8V LifePO4 Start -Stop High Performance LifePO4 battery which is replacement AGM Batteries.This battery features 200-1,600 Crank Amps and will have no trouble starting most conventional engines on the market today.



  1. Crank Amps Optional : 200/400/600/800/1000/1200CCA
  2. Current Optional : 20Ah/40Ah/60Ah/80Ah/100Ah
  3. Group size optional : 24' 27' 31' 34'
  4. 100% Maintenance free
  5. A Plug-and-Play System
  6. Powerful Cars,boat,light turck,SUVs etc....
  7. Dual purpose engine start and deep cycling .



ELECTRICAL SPECIFICATIONS   MECHANICAL SPECIFICATIONS
Nominal Voltage 25.6V   Terminal Type M8
Nominal Capacity 100Ah   Weight 22kg
Nominal Energy 2560Wh   Case Dimension(L*W*H) 525*234*220mm
Internal Resistance ≤30 @50% SOC   Case Type ABS
Capacity @40A: 300minutes(5hours)   Cell type / Chemistry LiFePO4
Self Discharge 5% /per month   LCD or Bluetooth Function Optional
Maximum In Series  NO   BMS:low voltage,high voltage,over temperature,
Maximum In Parallel No   Over current,short-circuit protection .etc
Discharge Current and Voltage Specifications   Charge Current and Voltage Specifications
MAX Continuous Discharge Current 100A   Max Charge Current 50A
CCA 1000A   Recommended Charge Current 20A - 50A
Discharge pulse current 1800±50A (31±10ms)   End of Charge voltage 14.6V
BMS Low Voltge Cut-off 10V    End of disCharge voltage 10V
Short Circuit Protection 200-800 µs Auto recover or charge release   Balancing Voltage 3.6V±0.05v pc
Temperature Ranges   COMPLIANCE SPECIFICATIONS
Discharge Temperature -20+65   Certifications CE for Battery Pack
Charge Temperature -20+45   UL1642 & IEC62133 for cells
Storage Temperature Range -20+45
BMS High Temperature Protection 90   Shipping classification UN 3480
Battery High Temperature Protection 60



24V 100Ah Lithium Cranking Batteries 1000CCA Automotive LiFePO4 Starting Battery 0



FAQ



1. Are you factory or trade company?
We ara leading battery manufacturer in China,Is a high-tech enterprise, specializing in R&D and marketing of Lithium rechargeable battery products.

2.It built in BMS?
Yes The starter battery built in BMS and have safety protection.

3.How to get a quote?
Please contact with us sales5@leadyo-battery.com

4.When you delivery order?
Normally 7-15 days for samples order , it can be negotiated based on exact order quantity and schedule.

5.Do you accept OEM?
OEM and ODM both available
