Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,UKCA
Model Number: LP12V080-ST
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 15-45 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Nominal Voltage: |
12V |
Nominal Capacity: |
80Ah |
Weight: |
10kg |
Dimension: |
L280xW175xH189mm |
Charge Current: |
50A |
CCA: |
1000A |
Size: |
24' 27' 31' 34' Etc |
Nominal Voltage: |
12V |
Nominal Capacity: |
80Ah |
Weight: |
10kg |
Dimension: |
L280xW175xH189mm |
Charge Current: |
50A |
CCA: |
1000A |
Size: |
24' 27' 31' 34' Etc |

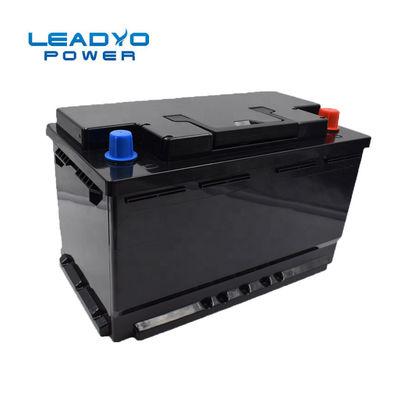

12V 80Ah crank battery1000CCA Stop-Start Batteries for marine start
12V with 200 400 600 800 1200 Cranking Amps Repalce lead acid batteries
Higher Performance LifePO4 battery
100% Maintenance free
With Different sizes
Lithium Iron Phosphate(LiFePO4) is the safest type of lithium battery and a ready to go replacement and updrade from lead acid, AGM or gel.
With the lead battery ,each crank is removing energy from the battery, and the voltage is dropping as the energy is being removed. This causes a reduction in the available power in the next crank and eventually the lead acid battery cannot crank anymore. With the lithium battery ,the energy is also being removed but the voltage doesn't drop. so, in the lithium battery, each crank will deliver approximately the same amount of power,the battery provides constant voltage across the discharge which means it provides the same amount of power from the first crank through to the last crank before needing to be charged again.
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | M8 | |
| Nominal Capacity | 60Ah | Weight | 7.5kg | |
| Nominal Energy | 768Wh | Case Dimension(L*W*H) | L280xW175xH189mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @14A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | NO | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 100A | Max Charge Current | 50A | |
| CCA | 850A | Recommended Charge Current | 15A - 30A | |
| Discharge pulse current | 1200±50A (31±10ms) | End of Charge voltage | 14.6V | |
| BMS Low Voltge Cut-off | 10V | End of disCharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
More models
| Voltage | Capacity | CCA | Weight | Dimension |
| 12V | 20Ah | 400A | 3kg | L244*W176*H197mm |
| 12V | 40Ah | 600-800A | 5kg | L244*W176*H197mm |
| 12V | 60Ah | 800-1000A | 7kg | L278*W176*H172mm |
| 12V | 80Ah | 1200A | 10kg | L280xW175xH189mm |
| 12V | 100Ah | 1200A | 13kg | L355xW175xH188mm |
| 12V | 120Ah | 1600A | 16kg | L398xW175xH188mm |
FAQ
Q: Are you trading company or manufacturer?
A: We are Leadyo original factory from shenzhen , China.
Q. Can I print my LOGO on it?
A: YES, LOGO/sticker/OEM/ODM welcomed
Q. What warranty do I have?
A: Warranty: 3 years, we would provide repair or replacement with the warranty period.if any quality problems on our side in this period, Please show us video or photos for confirm before we sent solution.
Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 etc.
Q:Do you have MOQ ?
A:No limited. Small order also welcome.More quantity has better price, we will check the best price for you.
