Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,DG certificate
Model Number: LP12V120
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 7-25 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Nominal Voltage: |
12.8V |
Nominal Capacity: |
120Ah |
Weight: |
15kg |
Dimension: |
353*175*190mm |
Continuous Current: |
150A |
Auto Heating: |
Self Heating Function |
BMS: |
Custom-made |
Nominal Voltage: |
12.8V |
Nominal Capacity: |
120Ah |
Weight: |
15kg |
Dimension: |
353*175*190mm |
Continuous Current: |
150A |
Auto Heating: |
Self Heating Function |
BMS: |
Custom-made |
Self Heating DIN L5 12V 120Ah LiFePO4 RV,Caravan,motorhome lithium iron batteries:
Features of 12V 120Ah Caravan lithium iron batteries
Nominal Voltage 12.8V
Nominal Capacity 120 Ah
Capacity @ 24A 300 min
Energy 1536Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Balancing function
With Smart BMS has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.
What's the heating rv lithium ion batteries?
Cold Temperature Charging Just Got Easier with our Low Temperature batteries
The lithium iron phosphate batteries are cold weather performance batteries that can charge well at temperatures down to -20°C (-4°F).The system features proprietary technology which draws power from the charger itself, requiring no additional components. The 12V 120Ah is an ideal choice for use in RVs, off-grid solar, electric vehicles, and in any application where charging in colder temperatures is necessary.
Specs of rv lithium ion batteries
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | Round-bolt Terminal | |
| Nominal Capacity | 120Ah | Weight | 15kg | |
| Nominal Energy | 1536Wh | Case Dimension(L*W*H) | 353*175*190mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @24A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | 4PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 150A | Max Charge Current | 150A | |
| Peak Current | 500A | Recommended Charge Current | 25A - 60A | |
| Discharge pulse current | 500±30A (31±10ms) | End of Charge voltage | 14.4V±0.2V | |
| BMS Low Voltge Cut-off | 10V | End of discharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||

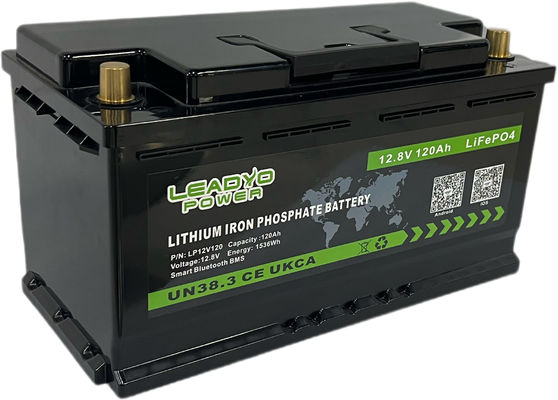

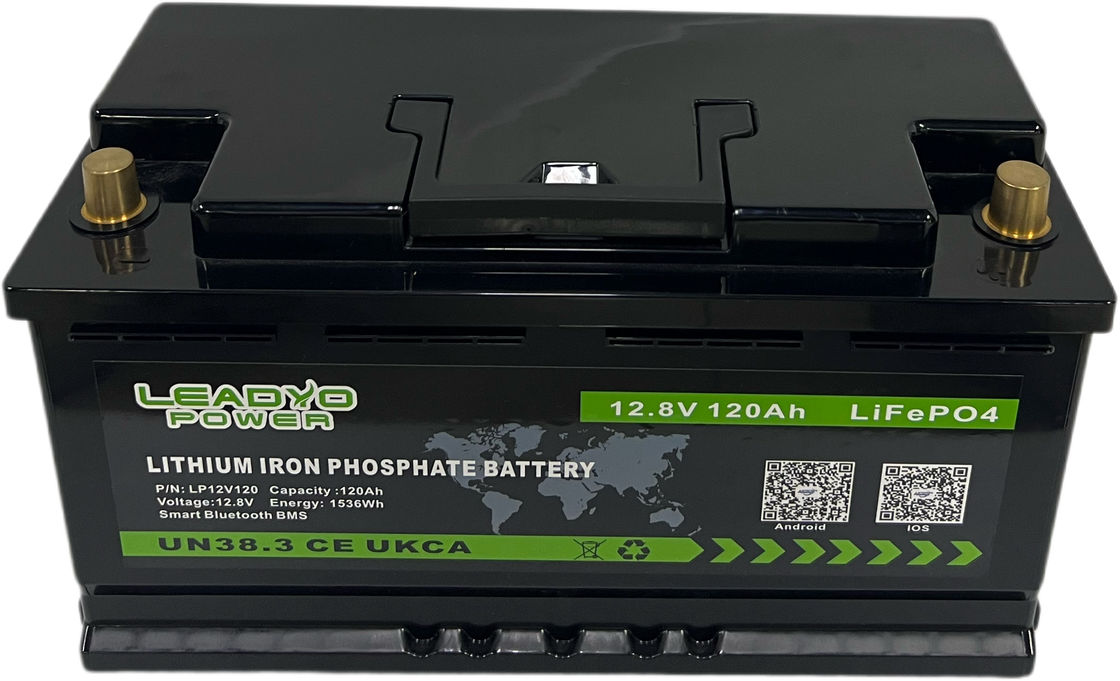

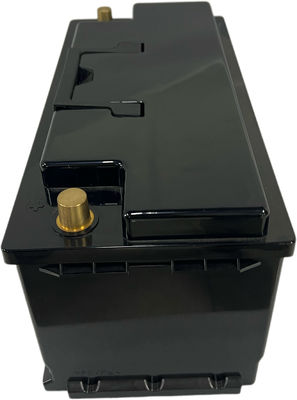

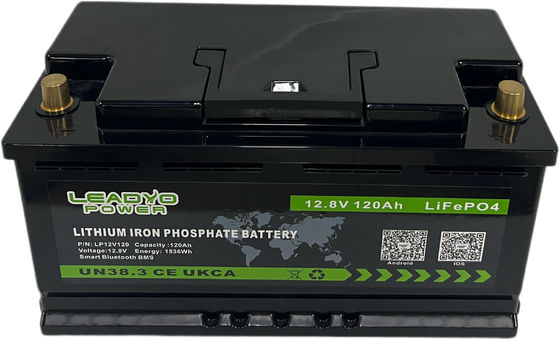

Pictures of rv lithium ion batteries?
FAQ of rv lithium ion batteries?
Q1. What is the biggest difference between your battery and other suppliers:
A: we use our self-developed custom -made BMS ,Our BMS Technology (powered by Texas structure US or Seiko Japan) is designed for our battery. Together with our class a batteries (China Leading brand Cells ),Most customers choose our battery packs because our internal process is perfect, humanized, safe and our Advanced BMS system
Q2. How about your LiFePO4 Lithium Battery delivery time?
A: 1-25 workdays after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q3: How about your warranty?
A: 3years warranty
Q4. Is this LiFePO4 Battery Pack safe?
A: Passed the overcharge, over discharge, over temperature, short circuit, acupuncture and other safety tests, no fire, no explosion at any circumstance; price to ensure our customers benefit ;
