Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,UKCA
Model Number: LP36V080
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 10-25 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Type: |
Lifepo4 Battery Pack |
Voltage: |
36V |
Capacity: |
80Ah |
Weight: |
29kg |
Dimension((L*W*H): |
552*240*218 |
Case: |
Metal Case |
Type: |
Lifepo4 Battery Pack |
Voltage: |
36V |
Capacity: |
80Ah |
Weight: |
29kg |
Dimension((L*W*H): |
552*240*218 |
Case: |
Metal Case |

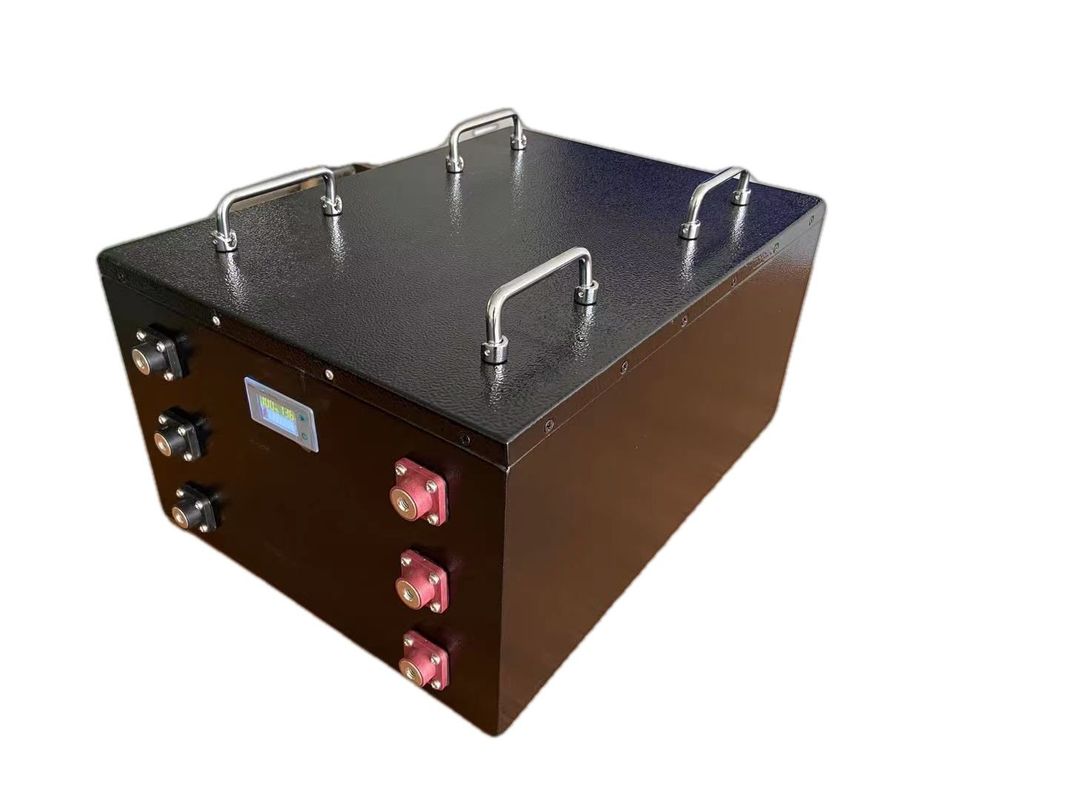

With just a simple battery swap, the 36V 80Ah Lithium-Ion battery delivers long run times and opportunity charging——and eliminates maintenance. It's a perfect upgrade for Golf Carts applications.
High Current Golf Cart Lifepo4 36V 80Ah 100A Battery Rechargeable Lithium ion Batteries with LCD
Light in weight ,Small in size ,Play Longer ,10 Years Design life ,Zero maintenance,Plug and Play
Specification of 36V Lifepo4 Golf Cart Battery with LCD display :
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 38.4V | Terminal Type | M8 | |
| Nominal Capacity | 80Ah | Weight | 29kg | |
| Nominal Energy | 3072Wh | Case Dimension(L*W*H) | 552*240*218mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | Stainless Steel Metal case |
|
| Capacity | @16A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | NO | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | Unlimited | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 100A | Max Charge Current | 50A | |
| Peak Current | 150A /120s | Recommended Charge Current | 10A - 25A | |
| Discharge pulse current | 300±50A (31±10ms) | End of Charge voltage | 43.8V±0.2V | |
| BMS Low Voltge Cut-off | 24V | End of discharge voltage | 24V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| Battery High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |

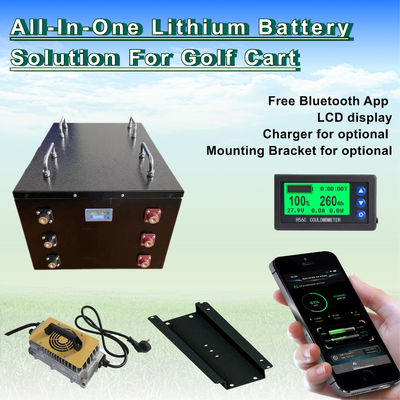

Multiple monitoring for optional of 36V 80Ah Lithium golf cart battery:
By LCD .
By Bluetooth APP (Free)

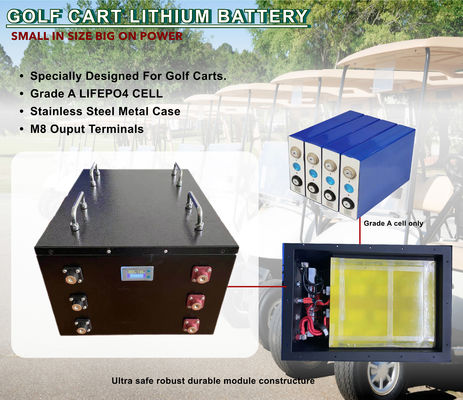

Bulit-in super safety lifepo4 prismatic cells and BMS
Multiple Protection Circuit with MOS / IC solution with low internal resistance
More Golf Cart Lithium Battery For Optional:
Welcome to customize LOG /Size /Functions / Color :
FAQ
1. Are you factory or trade company?
We ara leading battery manufacturer in China,Is a high-tech enterprise, specializing in R&D and marketing of Lithium rechargeable battery products. Our Lithium battery products are widely used in Marine boat /RV/ Camping cart/AGVGolf-cartelectric-motorcycle/Solar energy storage systemelectric vehicleselectric tools/UPS backupTelecom towersMedical equipment and etc.
2.What is your main product?
•Deep cycle LiFePo4/NMC batteries, 12V-96V LiFepo4 3-400A optional;
•Start-stop LiFepo4 12V 200CCA-1600CCA
•1-32S Lithium PCM/BMS max 250A
•NMC/LFP/LTO cells
3.When you delivery order?
Normally 7-15 days for samples order , it can be negotiated based on exact order quantity and schedule.
4.Do you accept OEM?
Yes sure, can customized your brand battery
5.May i get more golf cart lifepo4 battery?
Yes,please contact us.
6.How to get a quote?
Please contact us,sales6@leadyo-battery.com
