Home > products > Lithium Battery Applications > Smart CANBUS RS485 Lithium Golf Cart 36V 38.4V 200Ah LiFePO4 LFP Battery Pack With LCD LED Display / Charger

Smart CANBUS RS485 Lithium Golf Cart 36V 38.4V 200Ah LiFePO4 LFP Battery Pack With LCD LED Display / Charger

Product Details

Place of Origin: China

Brand Name: LEADYO

Certification: UN38.3, CE,MSDS,UKCA

Model Number: LP36V200

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiable

Packaging Details: UN3480 Standard Export

Delivery Time: 15-45 Days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online

Supply Ability: 60Mwh

Get Best Price
Highlight: Lithium Golf Cart Battery,48 Volt Golf Cart Batteries,48v Lifepo4 Golf Cart Battery
Keyword:
Lithium Golf Cart Batteries
Voltage:
36V
Capacity:
200Ah
Weight:
74kg
Dimension((L*W*H):
800*316*217MM
Continuous Discharge:
200A (300A /10s)
Warranty:
5 Years
Commnication:
LDC / BLUETOOT /CAN/RS485.
Cycles:
5000+ @0.2C
Keyword:
Lithium Golf Cart Batteries
Voltage:
36V
Capacity:
200Ah
Weight:
74kg
Dimension((L*W*H):
800*316*217MM
Continuous Discharge:
200A (300A /10s)
Warranty:
5 Years
Commnication:
LDC / BLUETOOT /CAN/RS485.
Cycles:
5000+ @0.2C

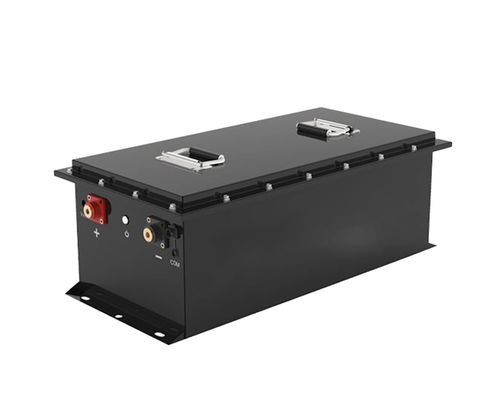

Smart CANBUS RS485 Lithium Golf Cart 36V 38.4V 200Ah LiFePO4 LFP Battery Pack With LCD LED Display / Charger

Smart Lithium Golf Cart Lifepo4 36V 200Ah LFP with 150A-200A BMS with CAN ,RS485 Commnication ,Rechargeable Batteries with LCD for Golf Carts Applications



Product Introduction of lifepo4 battery golf cart 36V 200Ah batteries

The Golf Cart Lithium Battery is a cutting-edge power solution specifically designed for golf carts. It harnesses the advanced technology of lithium-ion chemistry, specifically Lithium Iron Phosphate (LiFePO4), to deliver exceptional performance and reliability. With its compact design and superior energy storage capabilities, this battery revolutionizes the way golf carts are powered.



Product Characteristics lifepo4 battery golf cart battery 36V 200Ah:
Advanced Lithium-Ion Technology: The Golf Cart Lithium Battery utilizes advanced lithium-ion technology, specifically LiFePO4 chemistry, known for its high energy density, longevity, and safety features.
Intelligent Battery Management System (BMS): Each battery is equipped with a sophisticated BMS that monitors and protects the battery cells from overcharging, over-discharging, and excessive temperatures. This ensures safe and efficient operation.
Voltage Stability: The Golf Cart Lithium Battery maintains a stable voltage output throughout its discharge cycle, providing a consistent and reliable power supply to the golf cart's electrical system.
Compact Form Factor: The battery's compact size enables easy installation and integration into golf carts, optimizing space utilization without compromising performance.
High Efficiency: This lithium battery offers high energy efficiency, minimizing power wastage and maximizing the utilization of stored energy. It helps to extend the battery's range and operating time



The ideal drop-in replacement & upgrade from AGM ,the Golf Cart Lithium Battery is a technologically advanced power solution that brings numerous benefits to golf cart owners. With its high energy density, extended cycle life, fast charging capability, and maintenance-free operation, it enhances the performance, range, and overall experience of using a golf cart. Its durability, environmental friendliness, and compact design make it a reliable and sustainable choice for powering golf carts.



Introducing Leadyo's High-Performance Lithium Golf Cart Deep Cycle Batteries - 38.4V 36V 200Ah, 200A, 7.68Kwh LiFePO4 Battery Pack For Golf Cart



ELECTRICAL SPECIFICATIONS MECHANICAL SPECIFICATIONS
Nominal Voltage 38.4V Terminal Type M8
Nominal Capacity 200Ah Weight 74kg
Nominal Energy 7.68kWh Case Dimension(L*W*H) 800*316*217mm
Internal Resistance ≤30 @50% SOC Case Type Metal case
Capacity @30A: 210minutes(3.5hours) Cell type / Chemistry LiFePO4
Self Discharge 5% /per month LCD or Bluetooth Function Optional
Maximum In Series NO BMS:low voltage,high voltage,over temperature,
Maximum In Parallel Unlimited Over current,short-circuit protection .etc
Discharge Current and Voltage Specifications Charge Current and Voltage Specifications
MAX Continuous Discharge Current 200A Max Charge Current 200A
Peak Current 300A /10s Recommended Charge Current 20A - 50A
Discharge pulse current 600±50A (31±10ms) End of Charge voltage 43.8V±0.2V
BMS Low Voltge Cut-off 30V End of discharge voltage 30V
Short Circuit Protection 200-800 µs Auto recover or charge release Balancing Voltage 3.6V±0.05v pc
Temperature Ranges COMPLIANCE SPECIFICATIONS
Discharge Temperature -20+65 Certifications CE for Battery Pack
Charge Temperature -20+45 UL1642 & IEC62133 for cells
Storage Temperature Range -20+45
Battery High Temperature Protection 90 Shipping classification UN 3480

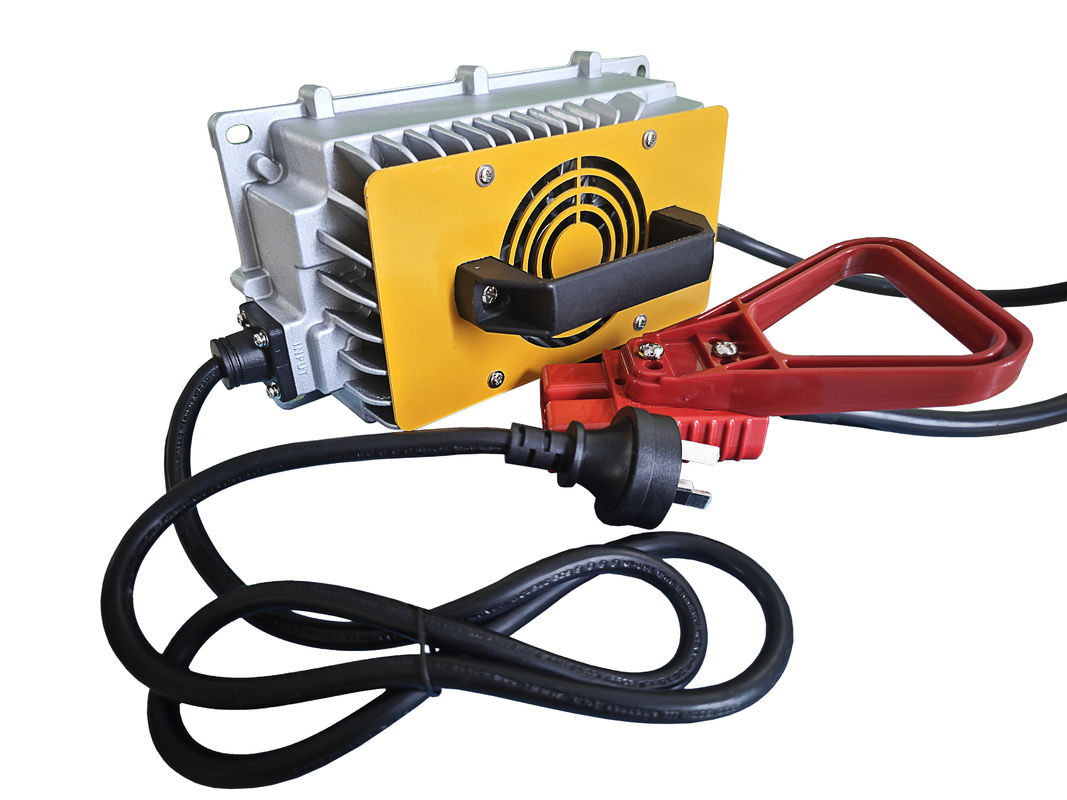

Lifepo4 golf cart battery with charger

Smart CANBUS RS485 Lithium Golf Cart 36V 38.4V 200Ah LiFePO4 LFP Battery Pack With LCD LED Display  / Charger 0Smart CANBUS RS485 Lithium Golf Cart 36V 38.4V 200Ah LiFePO4 LFP Battery Pack With LCD LED Display  / Charger 1

Smart CANBUS RS485 Lithium Golf Cart 36V 38.4V 200Ah LiFePO4 LFP Battery Pack With LCD LED Display  / Charger 2



Upgrade to LiFePO4 Batteries for Your Golf Cart and Experience the Difference

  • When compared to traditional AGM/lead acid batteries, LiFePO4 batteries, also known as lithium iron phosphate batteries, offer a multitude of advantages:
  • Plug-and-Play Design: Our LiFePO4 battery packs feature a simple and hassle-free plug-and-play design. Easily convert your golf cart from 6-6V lead batteries to just one 36V lithium battery, or from 8-6V lead batteries to a single 48V lithium battery.
  • Integrated Battery Management Systems: Our LiFePO4 batteries come equipped with advanced battery management systems that provide comprehensive protection functions. Enjoy maximum efficiency and the safest performance possible.
  • Increased Power Storage: With LiFePO4 batteries, you'll benefit from over 50% more power storage compared to lead acid batteries. This additional capacity translates into greater mileage and the ability to run your golf cart for longer distances
  • Lightweight and Compact: Utilizing the latest LiFePO4 technology, our lithium golf cart batteries are significantly lighter, weighing only 70% less, and smaller, occupying just 50% of the space compared to lead acid batteries. Enjoy improved handling and more efficient use of space.
  • Extended Lifespan: LiFePO4 batteries boast an impressive lifespan that is six times longer than that of lead acid batteries. With an estimated life expectancy of 6,000 cycles, you can rely on our batteries for long-lasting performance.

Upgrade your golf cart to LiFePO4 batteries and unlock the full potential of your vehicle. Experience the convenience of plug-and-play installation, enhanced power storage, lightweight design, and extended lifespan. Make the switch today and elevate your golfing experience to new heights.
