Place of Origin: | China |
---|---|
Brand Name: | LEADYO |
Certification: | CE,MSDS |
Model Number: | LP24V100 |
Minimum Order Quantity: | 1 |
Price: | Negotiable |
Packaging Details: | standard export carton |
Delivery Time: | 1-2weeks for samples; 3-4weeks for mass production |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |
Supply Ability: | 60Mwh |
Nominal Voltage: | 25.6V | Nominal Capacity: | 100Ah |
---|---|---|---|
Weight: | 21kg | Dimension: | 480*170*240mm |
Continuous Current: | 100A | Peak Current: | 500A |
Case: | ABS/Black | Capacity Optional: | 50Ah-400Ah |
High Light: | LEADYO 24V Deep Cycle Lithium Battery,LEADYO 100AH Deep Cycle Lithium Battery,LiFePO4 Lithium Battery With BMS |

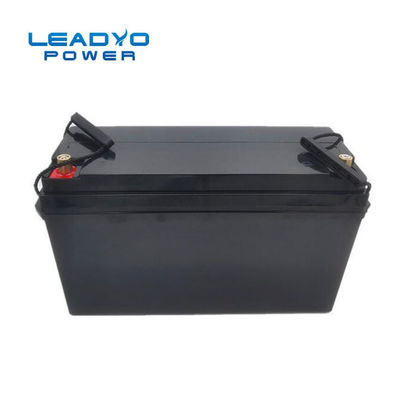

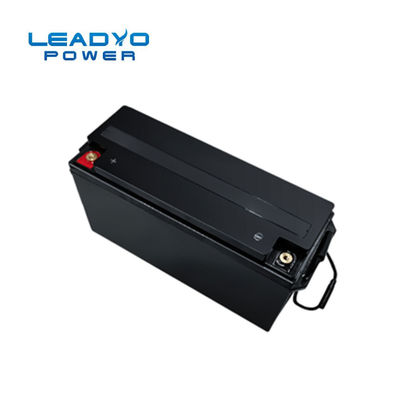

LiFePO4 100AH 24V Deep Cycle Lithium Battery with BMS
Lithium Iron Phosphate Battery 24V 100Ah
Nominal Voltage 25.6V
Nominal Capacity 100 Ah
Capacity @ 20A 300 min
Energy 2560 Wh
Balancing function
With Smart BMS has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.
Applications:
ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
Nominal Voltage | 25.6V | Terminal Type | M8 | |
Nominal Capacity | 100Ah | Weight | 20kg | |
Nominal Energy | 2560Wh | Case Dimension(L*W*H) | 480*170*240mm | |
Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
Capacity | @20A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
Maximum In Series | 4PCS | BMS:low voltage,high voltage,over temperature, | ||
Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
MAX Continuous Discharge Current | 100A | Max Charge Current | 100A | |
Peak Current | 300A | Recommended Charge Current | 20A - 50A | |
Discharge pulse current | 500±50A (31±10ms) | End of Charge voltage | 28.8V±0.2V | |
BMS Low Voltge Cut-off | 20V (2.0V±0.05v) pc) | Balancing current | Auto start | |
Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
Discharge Temperature | -20~+65℃ | Certifications | CE for Battery Pack | |
Charge Temperature | -20~+45℃ | UL1642 & IEC62133 & BIS for cells | ||
Storage Temperature Range | -20~+45℃ | |||
BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
Battery High Temperature Protection | 60℃ |
FAQ
Q. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q. Do you have any MOQ limit?
A. No, 1pc for sample checking is available, we have MOQ for mass production.
Q. How do you ship the goods and how long does it take to arrive?
A. It usually takes 1-2 weeks to arrive. Airfreight and seafreight is also optional.
Q. Is it OK to print my logo on the product?
A.Yes.OEM/ODM services offered
Q.Is this product safe?
A:Passed the overcharge, over discharge, over temperature, short circuit, acupuncture and other safety tests
Q.Which certificates do you have?
A:We have CE/ROHS/UN38.3/MSDS ...etc.
