Home > products > 24V 36V 48V Batteries > 5000 Cycles 48V 50ah Lifepo4 Battery For Solar Energy Storage System 25kg

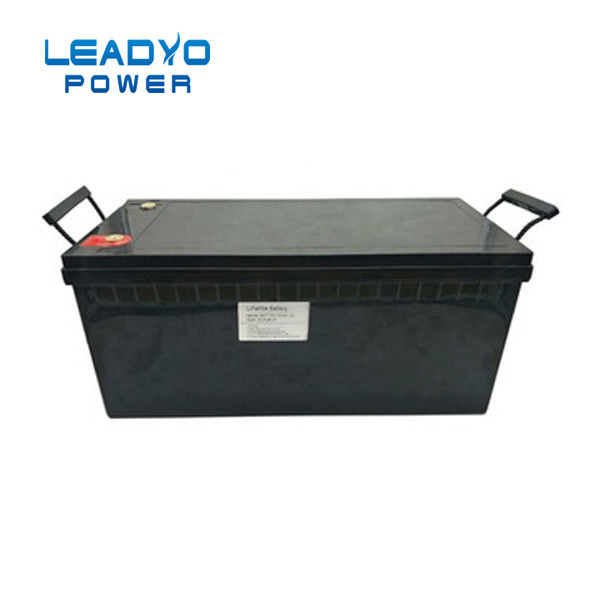

5000 Cycles 48V 50ah Lifepo4 Battery For Solar Energy Storage System 25kg

Product Details

Place of Origin: China

Brand Name: LEADYO

Certification: UN38.3, CE,MSDS,UKCA

Model Number: LP48V050

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiable

Packaging Details: UN3480 Standard Export

Delivery Time: 15-45 Days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online

Supply Ability: 60Mwh

Get Best Price
Highlight: Lifepo4 48v 50ah Lithium Ion Battery Pack For Solar System
Voltage:
51.2V
Cpacity:
50Ah
Weight:
25kg
Dimension:
525*233*220mm
Max Charge Current:
500A
Max Discharge Current:
50A
Cycles:
Over 5000 Times
Voltage:
51.2V
Cpacity:
50Ah
Weight:
25kg
Dimension:
525*233*220mm
Max Charge Current:
500A
Max Discharge Current:
50A
Cycles:
Over 5000 Times
5000 Cycles 48V 50ah Lifepo4 Battery For Solar Energy Storage System 25kg



Energy Storage Lifepo4 48v 50ah Lithium Ion Battery Pack for solar system



The Leadyo Lithium Iron Phosphate Battery is the perfect option for off-grid energy storage systems. The 48V nominal voltage ensures low heat generation and high efficiency during high power transmission. The modular design easily scales to meet a range of configurations—making it simple to tailor your energy requirements to specific projects. The battery meets the highest safety standards and has an exceptional lifecycle, optimized with proprietary manufacturing processes and cell architecture. The state-of-the-art battery management system (BMS) enables comprehensive protection features.



Lithium Iron Phosphate Battery 48V 50Ah



Nominal Voltage 51.2V

Nominal Capacity 50 Ah

Capacity @ 10A 300 min

Energy 2560 Wh

Resistance ≤30 mΩ @ 50%

SOC Self Discharge <3% / Month

Balancing function



ELECTRICAL SPECIFICATIONS   MECHANICAL SPECIFICATIONS
Nominal Voltage 51.2V   Terminal Type M8
Nominal Capacity 50Ah   Weight 25kg
Nominal Energy 2560Wh   Case Dimension(L*W*H) 525*234*220mm
Internal Resistance ≤30 @50% SOC   Case Type ABS
Capacity @10A: 300minutes(5hours)   Cell type / Chemistry LiFePO4
Self Discharge 5% /per month   LCD or Bluetooth Function Optional
Maximum In Series  NO   BMS:low voltage,high voltage,over temperature,
Maximum In Parallel No limit   Over current,short-circuit protection .etc
Discharge Current and Voltage Specifications   Charge Current and Voltage Specifications
MAX Continuous Discharge Current 50A   Max Charge Current 50A
Peak Current 100A   Recommended Charge Current 10A - 20A
Discharge pulse current 1800±30A (31±10ms)   End of Charge voltage 57.6V±0.2V
BMS Low Voltge Cut-off 40V   End of discharge voltage 40V
Short Circuit Protection 200-800 µs Auto recover or charge release   Balancing Voltage 3.6V±0.05v pc
Temperature Ranges   COMPLIANCE SPECIFICATIONS
Discharge Temperature -20+65   Certifications CE for Battery Pack
Charge Temperature -20+45   UL1642 & IEC62133 for cells
Storage Temperature Range -20+45
BMS High Temperature Protection 90   Shipping classification UN 3480
Battery High Temperature Protection 60





5000 Cycles 48V 50ah Lifepo4 Battery For Solar Energy Storage System 25kg 0

FAQ



Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?
A. Sample needs 5-10 days, mass production time needs 3-5 weeks, it depends on order quantity.

Q3. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?
A. Express, or by sea shipping

Q5. How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
