Shenzhen Leadyo Technology Co., Ltd.
Lithium Battery One-Stop Solution Manufacturer I 15 Years Experience
| Place of Origin: | China |
|---|---|
| Brand Name: | LEADYO |
| Certification: | UN38.3, CE,MSDS,UKCA |
| Model Number: | LP48V050-BT |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | UN3480 Standard Export |
| Delivery Time: | 15-45 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |
| Supply Ability: | 60Mwh |
| Nominal Voltage: | 51.2V | Nominal Capacity: | 50Ah |
|---|---|---|---|
| Weight: | 26kg | Energy: | 2.4KWH |
| Dimension: | 525*234*220mm | Max Charge Current: | 100A |
| Max Discharge Current: | 100A | CaseABS Case: | ABS/Metal Case |
| Ip Rating: | IP66 | ||
| High Light: | 2.4KWH Lithium Solar Storage Batteries,LEADYO Lithium Solar Storage Batteries,50Ah Lithium Battery For Solar Energy Storage |
||

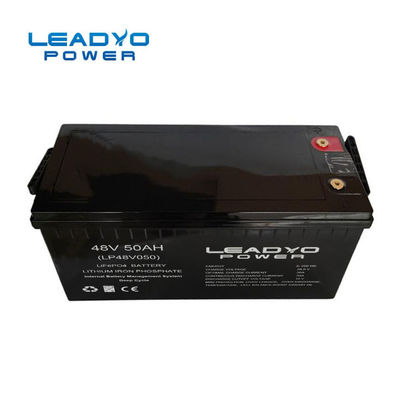

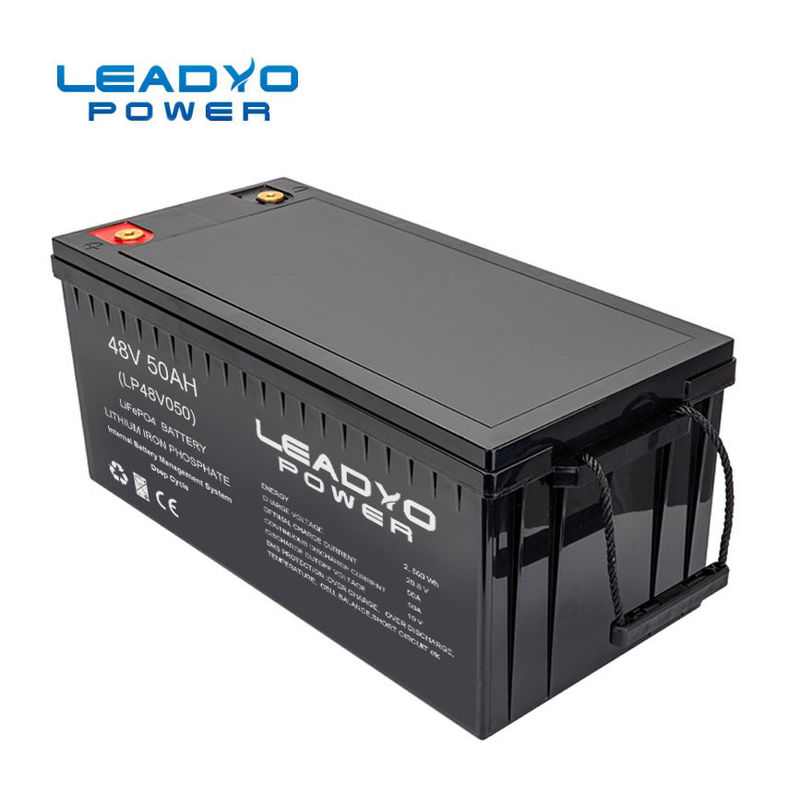

Smart Bluetooth 2.4KWH 51.2V 50Ah Home Solar Battery Storage For House
The Leadyo Lithium Iron Phosphate Battery is the perfect option for off-grid energy storage systems. The 48V 50Ah nominal voltage ensures low heat generation and high efficiency during high power transmission. The modular design easily scales to meet a range of configurations—making it simple to tailor your energy requirements to specific projects. The battery meets the highest safety standards and has an exceptional lifecycle, optimized with proprietary manufacturing processes and cell architecture. The state-of-the-art battery management system (BMS) enables comprehensive protection features.it can with Bluetooth monitoring system to check the health of the battery.More information please feel free to contatc with us.
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 51.2V | Terminal Type | M8 | |
| Nominal Capacity | 50Ah | Weight | 26kg | |
| Nominal Energy | 2560Wh | Case Dimension(L*W*H) | 525*234*220mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @10A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | NO | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 100A | Max Charge Current | 100A | |
| Peak Current | 300A | Recommended Charge Current | 10A - 20A | |
| Discharge pulse current | 500±30A (31±10ms) | End of Charge voltage | 57.6V±0.2V | |
| BMS Low Voltge Cut-off | 40V | End of discharge voltage | 40V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
