Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,UKCA
Model Number: LP12V600
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 15-45 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Nominal Voltage: |
12.8V |
Nominal Capacity: |
600Ah |
Weight: |
62kg |
Dimension: |
705*305*260mm |
Continuous Current: |
200A |
Peak Current: |
500A |
Case: |
Metal Case |
Nominal Voltage: |
12.8V |
Nominal Capacity: |
600Ah |
Weight: |
62kg |
Dimension: |
705*305*260mm |
Continuous Current: |
200A |
Peak Current: |
500A |
Case: |
Metal Case |

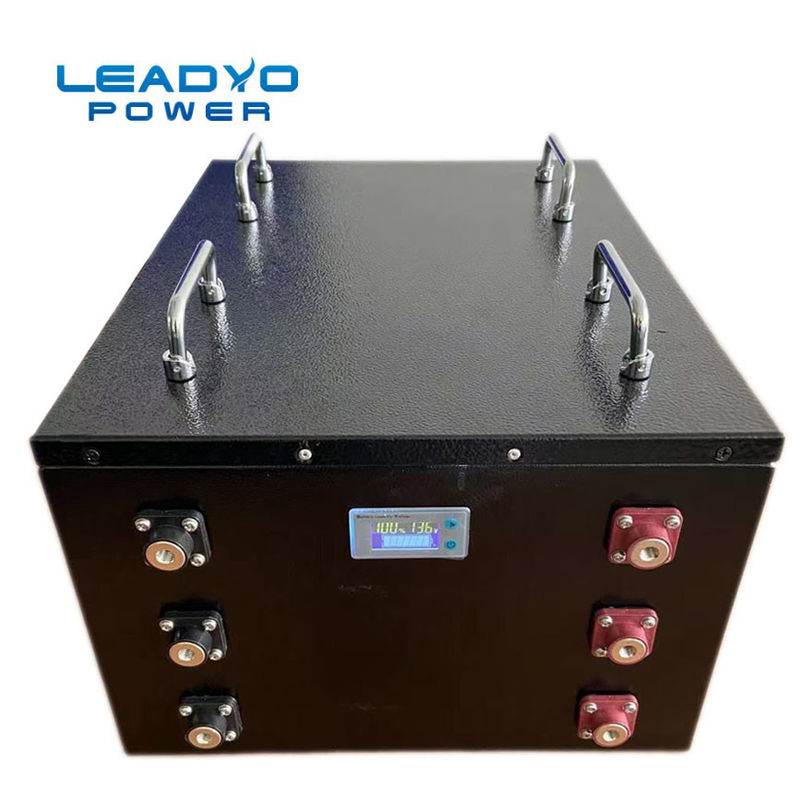

High capacity 12V 600ah Deep Cycle LFP LiFePO4 Custom Battery Pack
Lithium Iron Phosphate Battery 12.8V 600Ah
Nominal Voltage 12.8V
Nominal Capacity 600Ah
Capacity @ 100A 360 min
Energy 7680 Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Balancing function
With Smart BMS has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.
Key features:
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | M8 | |
| Nominal Capacity | 600Ah | Weight |
62kg |
|
| Nominal Energy | 7680Wh | Case Dimension(L*W*H) | 705*305*260mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @80A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | 4PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 200A | Max Charge Current | 200A | |
| Peak Current | 500A | Recommended Charge Current | 120A - 200A | |
| Discharge pulse current | 700±50A (31±10ms) | End of Charge voltage | 14.4V±0.2V | |
| BMS Low Voltge Cut-off | 10V | End of discharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 & BIS for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
FAQ
Q1. Can I order samples?
Answer: Yes, we welcome to order samples to test and check the quality.
Q2. What about the delivery time?
Answer: Samples will take 1-2weeks , and mass production time will take 3-5 weeks, depending on the order quantity.
Q3. Do you have a minimum order quantity limit?
Answer: Yes, we have a MOQ for mass production, which depends on different part numbers. 1~10pcs sample order. The minimum order quantity is 1pc which can be used for sample inspection.
Q4. How to place an order?
Answer: Let us know your requirements or applications first. Secondly, we quote according to your request or suggestion. We will arrange production after you confirm.
Q5. Can I print my logo on the product?
Answer: Yes. Please inform us formally before production, and first confirm the design based on our samples.
