Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,UKCA
Model Number: LP48V030
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 15-45 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Nominal Voltage: |
51.2V |
Nominal Capacity: |
30Ah |
Weight: |
15kg |
Dimension: |
Customized |
Max Charge Current: |
30A |
Max Discharge Current: |
30A |
Case: |
Metal Case |
Communication: |
RS232/RS485 |
Terminal: |
M8 |
Nominal Voltage: |
51.2V |
Nominal Capacity: |
30Ah |
Weight: |
15kg |
Dimension: |
Customized |
Max Charge Current: |
30A |
Max Discharge Current: |
30A |
Case: |
Metal Case |
Communication: |
RS232/RS485 |
Terminal: |
M8 |

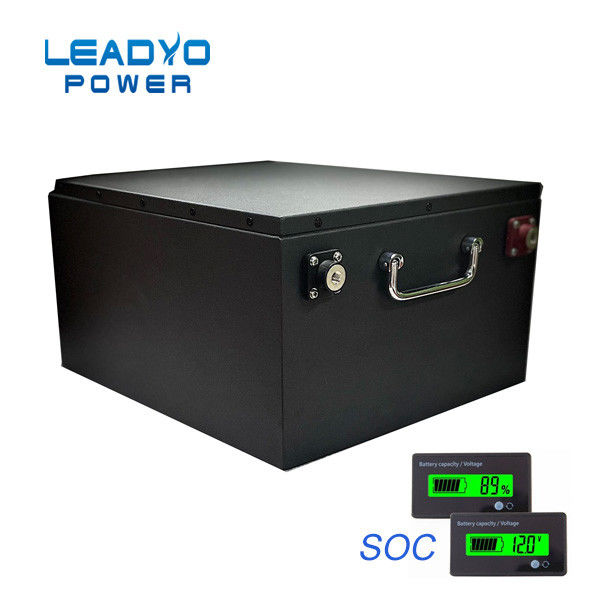

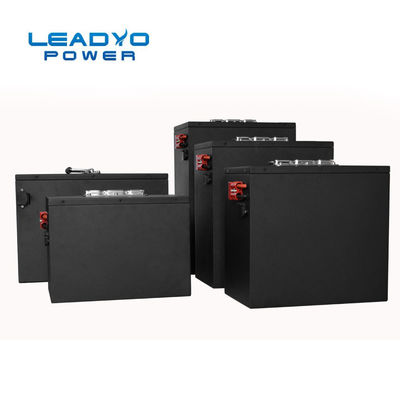

LiFePO4 30Ah 60Ah 48 volt lithium battery pack for electric golf cart
Lithium Battery with SMbus, I2C ,RS232 ,RS235 or Bluetooth
We provide:
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 51.2V | Terminal Type | M8 | |
| Nominal Capacity | 20Ah | Weight | 10kg | |
| Nominal Energy | 1024Wh | Case Dimension(L*W*H) | customized | |
| Internal Resistance | ≤30 @50% SOC | Case Type | Metal case/ PVC | |
| Capacity | @4A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | NO | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 20A | Max Charge Current | 20A | |
| Peak Current | 20A | Recommended Charge Current | 4A - 10A | |
| Discharge pulse curret | 50±10A (31±10ms) | End of Charge voltage | 57.6V±0.2V | |
| BMS Low Voltge Cut-off | 40V | End of discharge voltage | 40V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
