Shenzhen Leadyo Technology Co., Ltd.
Lithium Battery One-Stop Solution Manufacturer I 15 Years Experience
| Place of Origin: | China |
|---|---|
| Brand Name: | LEADYO |
| Certification: | UN38.3, CE,MSDS,UKCA |
| Model Number: | LP12V030 |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | UN3480 Standard Export |
| Delivery Time: | 15-45 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |
| Supply Ability: | 60Mwh |
| Nominal Voltage: | 12.8V | Nominal Capacity: | 30Ah |
|---|---|---|---|
| Weight: | 4kg | Size: | 195*133*171 |
| Continuous Charge Current: | 30A | Continuous Discharge Current: | 30A |
| Case: | ABS | Ip Rating: | IP66 |
| Warranty: | 2-3 Years | ||
| High Light: | 30Ah 12V Lithium Ion Battery Pack,UN 38.3 12V Lithium Ion Battery Pack,12v 30ah Lithium Ion Battery |
||

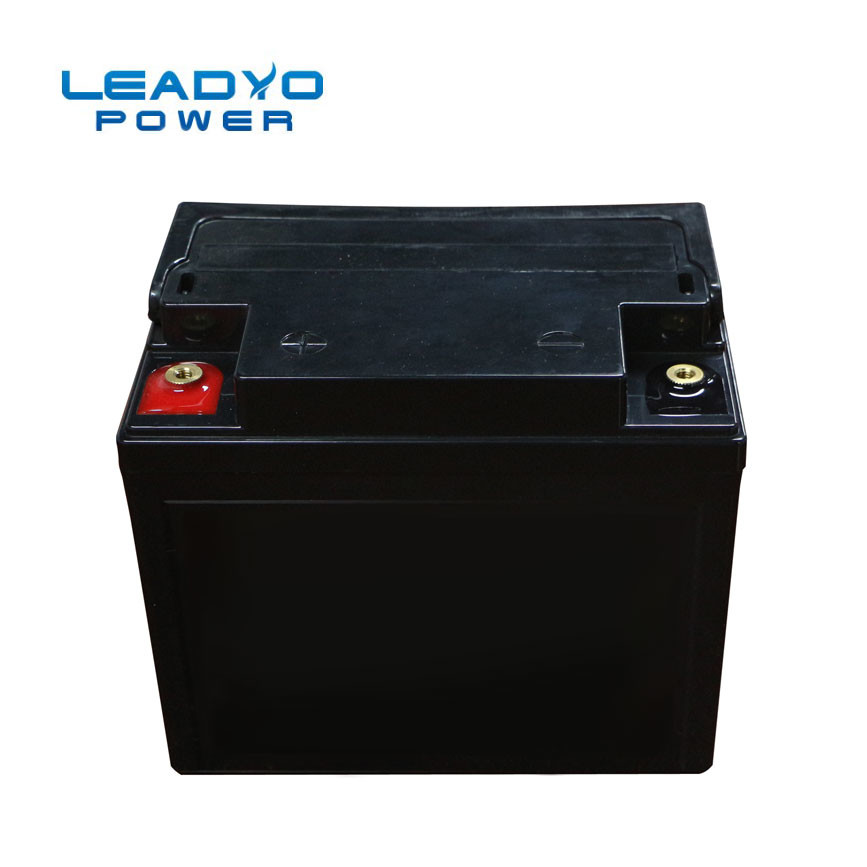

Plastic case 30Ah 12v lithium ion battery pack For Solar Street Light
Features:
LiFePO4 12.8V 30Ah Lithium Batteries
With high lifespan: from 5000 cycles to several tens of thousands
Possible deep discharges (up to 100%)
Lithium Iron Phosphate technology completely secure (no risk of explosion or self-ignition)
BMS (Battery Management System) built into the case: maximizes battery life AND secures battery life
Very low environmental toxicity
Calendar life > 10 years
Excellent temperature hold (-20 to 60 degrees Fahrenheit)
Flexible system: no limit in parallel and 4 in series
Constant power throughout discharge (low internal resistance)
Very low Losses from Peukert (energy efficiency >98%)
Very low self-discharge (<3% per month)
No lead, no rare earths, no acid, no degassing
Weight gain > 50% and 40% reduced footprint compared to lead batteries
Certification: CE, MSDS, UN 38.3
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | T3 | |
| Nominal Capacity | 30Ah | Weight | 4kg | |
| Nominal Energy | 384Wh | Case Dimension(L*W*H) | 195*133*171mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @4A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | 4PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 30A | Max Charge Current | 30A | |
| Peak Current | 80A | Recommended Charge Current | 6A - 15A | |
| Discharge pulse current | 100±10A (31±10ms) | End of Charge voltage | 14.4V±0.2V | |
| BMS Low Voltge Cut-off | 10V | End of discharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 & BIS for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
