Place of Origin: | China |
---|---|
Brand Name: | LEADYO |
Certification: | CE,MSDS |
Model Number: | 20Ah |
Minimum Order Quantity: | 1 |
Price: | Negotiable |
Packaging Details: | standard export carton |
Delivery Time: | 1-2weeks for samples; 3-4weeks for mass production |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |
Supply Ability: | 60Mwh |
Nominal Voltage: | 3.2V | Nominal Capacity: | 20Ah |
---|---|---|---|
Cell Type / Chemistry: | LiFePO4 | Weight: | 496g |
Dimension: | 7.25*161*227 | Max Charge Current: | 1C |
Max Discharge Current: | 20C | ||
High Light: | 20C Li Polymer Battery,A123 Li Polymer Battery,A123 20ah Prismatic Pouch Cell |

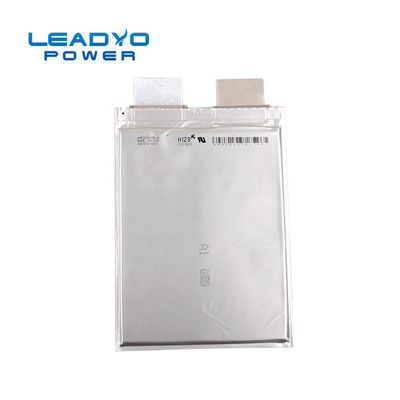

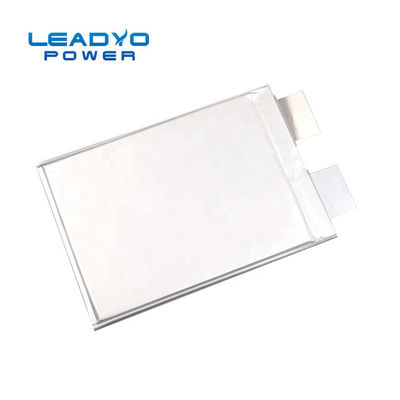

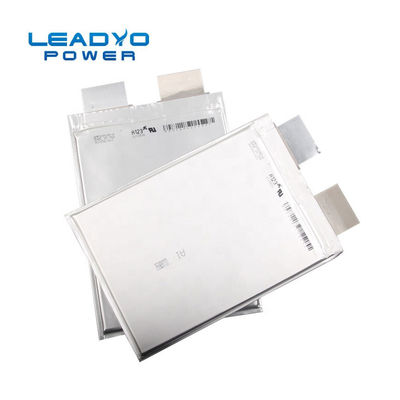

20C li-polymer battery lifepo4 a123 20ah prismatic pouch cell
Note:
1.This item is 200Ah 3.2V Life battery,Brand New Grade A.
2.100% pre-tested before shippment.
3,Full certificates, UN38.3+MSDS
4,Fast shippment,usually send out within 3-4 days.
5,Well package,4pcs/carton
American A123 polymer battery cell, AMP20M1HD-A prismatic battery unit, mainly for commercial/passenger battery operated vehicles and plug-in hybrid vehicles, featuring high energy density and high power density. The AMP20 battery unit not only achieves the industry's leading Abuse Tolerance level, but also has superior working life performance under high load cycle conditions. The battery unit can efficiently provide usable energy in a wide range of SOC(state of charge), and the size is minimized, and the energy cost per watt hour is minimized.
Specifications
No. | Items | Specifications |
1 | Nominal Voltage | 3.2V |
2 | Nominal Capacity | 19.6Ah |
3 | Standard Charge Current | 0.2C-0.5C |
4 | Max. Charge Current | 5C |
5 | Continuous Discharge current | 30C |
6 | Peak Discharge Current | 60C |
7 | Charge Cut-off Voltage | 3.9V |
8 | Discharge Cut-off Voltage | 2.0V |
9 |
Inner Resistance (Impedance) |
≤2mΩ |
10 | Weight | 496g |
11 | Dimensions |
Length:227 mm Width:160 mm Thickness: 7.25 mm |
12 | Operating Temperature |
Charging: 0°C ~ 45°C Discharging: -20°C ~ 60°C (The cell surface temperature cannot exceed 70°C) |
13 | Storage Temperature/Humidity |
Temperature: -10°C ~ +35°C Humidity:65%±20%RH (optimal store temperature of 23 ± 5°C for long term storage) |
14 | Cycle Life |
≥2000 times (100% DOD till 80% of initial capacity at 0.2C rate, IEC Standard) |
