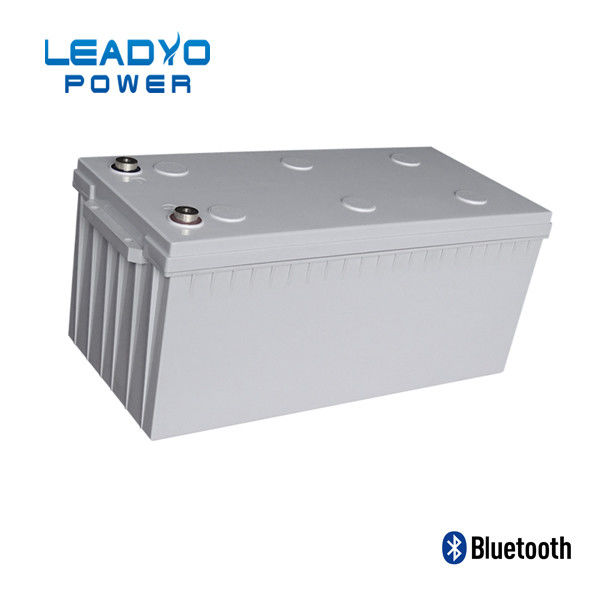

BMS 12V 200Ah Cold Weather Lithium Battery With Self Heating Function

Product Details

Place of Origin: China

Brand Name: LEADYO

Certification: UN38.3, CE,MSDS,UKCA

Model Number: LP12V200

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiable

Packaging Details: UN3480 Standard Export

Delivery Time: 15-45 Days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online

Supply Ability: 60Mwh

Get Best Price
Highlight: 12.8V 200Ah 200A Lifepo4 Lithium Battery With Self Heating Function
Nominal Voltage:
12.8V
Nominal Capacity:
200Ah
Weight:
21kg
Dimension:
480*168*240mm
Continuous Current:
200A
Peak Current:
800A
Auto Heating:
On Charge
Nominal Voltage:
12.8V
Nominal Capacity:
200Ah
Weight:
21kg
Dimension:
480*168*240mm
Continuous Current:
200A
Peak Current:
800A
Auto Heating:
On Charge
BMS 12V 200Ah Cold Weather Lithium Battery With Self Heating Function



12.8V 200Ah 200A Lifepo4 Lithium Battery with Self Heating Function





Lithium Iron Phosphate Battery 12V 200Ah



Nominal Voltage 12.8V

Nominal Capacity 200 Ah

Capacity @ 60A 300 min

Energy 2560Wh

Resistance ≤30 mΩ @ 50%

SOC Self Discharge <3% / Month





Features:

Our BMS Technology (powered by Texas structure) is designed for the harsh environment in Canada. Together with our class a batteries (China Leading brand Cells), we ensure that you have the best batteries solution.

Start heating : 0°C

Stop heating +5°C

with Balancing function and Smart BMS has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.





ELECTRICAL SPECIFICATIONS   MECHANICAL SPECIFICATIONS
Nominal Voltage 12.8V   Terminal Type M8
Nominal Capacity 200Ah   Weight 21kg
Nominal Energy 2560Wh   Case Dimension(L*W*H) 480*168*240mm
Internal Resistance ≤30 @50% SOC   Case Type ABS
Capacity @40A: 300minutes(5hours)   Cell type / Chemistry LiFePO4
Self Discharge 5% /per month   LCD or Bluetooth Function Optional
Maximum In Series 4PCS   BMS:low voltage,high voltage,over temperature,
Maximum In Parallel No limit   Over current,short-circuit protection .etc
Discharge Current and Voltage Specifications   Charge Current and Voltage Specifications
MAX Continuous Discharge Current 200A   Max Charge Current 200A
Peak Current 800A   Recommended Charge Current 40A - 100A
Discharge pulse current 800±50A (31±10ms)   End of Charge voltage 14.4V±0.2V
BMS Low Voltge Cut-off 10V   End of discharge voltage 10V
Short Circuit Protection 200-800 µs Auto recover or charge release   Balancing Voltage 3.6V±0.05v pc
Temperature Ranges   COMPLIANCE SPECIFICATIONS
Discharge Temperature -20+65   Certifications CE for Battery Pack
Charge Temperature -20+45   UL1642 & IEC62133 for cells
Storage Temperature Range -20+45
BMS High Temperature Protection 90   Shipping classification UN 3480
Battery High Temperature Protection 60





BMS 12V 200Ah Cold Weather Lithium Battery With Self Heating Function 0





FAQ



Q. What warranty do I have?
A: Warranty: 3 years, we would provide repair or replacement with the warranty period.



Q. Do you have Blue-tooth communication with your batteries?
A: Yes, please let us know if you NEED to add Blue-tooth communication with the batteries.



Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 etc.



Q:Do you have MOQ ?
A:No limited. Small order also welcome.More quantity has better price, we will check the best price for you.
