| Brand Name: | LEADYO |
| Model Number: | LP24V200 |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | UN3480 Standard Export |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |

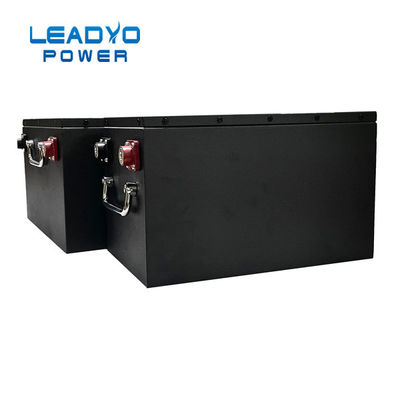

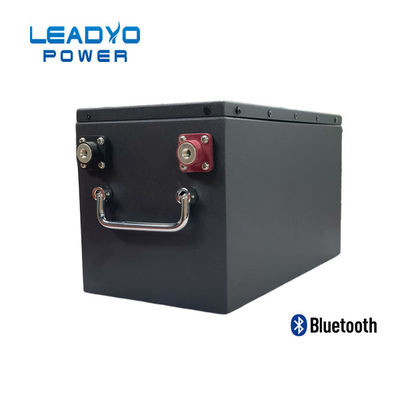

Marine Lifepo4 Batteries 24v 200ah battery Pack For Solar Storage System
Lithium Iron Phosphate Battery 25.6V 200Ah
Nominal Voltage 25.6 V
Nominal Capacity 200 Ah
Capacity @ 40A 300 min
Energy 2560 Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Features
Can With Bluetooth or RS485, RS2321,SMbus,I2C etc
Can make 4pcs in series
Parralle no limit
With balancing/Short circuit funtion
With CE,IP66,UN38.3 and MSDS.
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 25.6V | Terminal Type | M8 | |
| Nominal Capacity | 200Ah | Weight | 41kg | |
| Nominal Energy | 5120Wh | Case Dimension(L*W*H) | 550*305*260mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | Metal case | |
| Capacity | @40A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | 2PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 150A | Max Charge Current | 150A | |
| Peak Current | 500A | Recommended Charge Current | 40A - 100A | |
| Discharge pulse current | 600±50A (31±10ms) | End of Charge voltage | 28.8V±0.2V | |
| BMS Low Voltge Cut-off | 20V (2.0V±0.05v) pc) | Balancing current | Auto start | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 & BIS for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
RFQ
|
