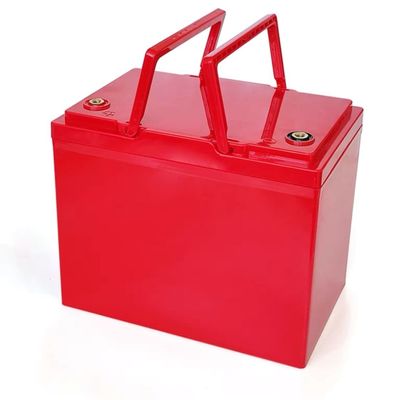

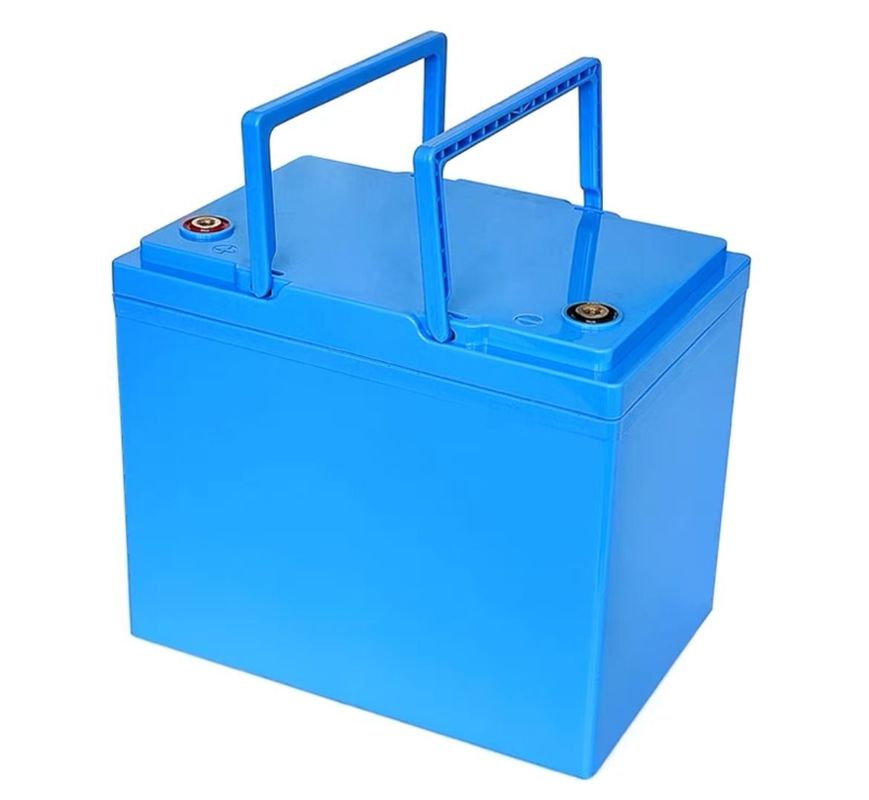

Group Size 27 high capacity deep cycle 12V 130Ah rv lithium battery pack
Rv lithium battery pack (12.8V/130Ah) with 27 Group Size 306*170*210mm
Nominal Voltage 12.8 V
Nominal Capacity 130 Ah
Capacity @26A 300 min
Energy 1664 Wh
Resistance ≤10 mΩ @ 50%
SOC Self Discharge <3% / Month
Features
Leadyo deep cycle batteries are specially designed to offer off-grid power. They are the perfect choice for RVs since most of the time you will be spending in remote areas where a dependable source of energy comes in handy. The sealed and maintenance-free design is suitable for recreation purposes such as RV.
The battery also has a non-spillable design that allows it to be used in areas requiring the use of such batteries. If you choose this battery, you will always be on the safe side no matter the location of your adventure.
ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
Nominal Voltage | 12.8V | Terminal Type | M8 | |
Nominal Capacity | 130Ah | Weight | 14kg | |
Nominal Energy | 1664Wh | Case Dimension(L*W*H) | 306*170*210mm | |
Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
Capacity | @16A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
Maximum In Series | 4PCS | BMS:low voltage,high voltage,over temperature, | ||
Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
MAX Continuous Discharge Current | 150A | Max Charge Current | 150A | |
Peak Current | 500A | Recommended Charge Current | 40A - 100A | |
Discharge pulse current | 700±50A (31±10ms) | End of Charge voltage | 14.4V±0.2V | |
BMS Low Voltge Cut-off | 10V | End of discharge voltage | 10V | |
Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
Discharge Temperature | -20~+65℃ | Certifications | CE for Battery Pack | |
Charge Temperature | -20~+45℃ | UL1642 & IEC62133 & BIS for cells | ||
Storage Temperature Range | -20~+45℃ | |||
BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
Battery High Temperature Protection | 60℃ |
FAQ
We are professional manufacturer in lithium battery field,with professional research anddevelopment team.
2.What is your main product?
Main products of protection circuit module for battery pack,especially cylindrical Li-ion battery.Li-ion polymer battery pack and LifePO4 battery.
3.How to proceed with an order?
Firstly, let us know your requirement or application.Secondly,we quote according to your requirements or our
suggestions.Thirdly,customer confirms the samples and place a deposit for formal order. Fourthly,we arrange the production.
4: What kind of certificates do you have?
We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 etc.
5,Do you have MOQ ?
No limited. Small order also welcome.More quantity has better price, we will check the best price for you.
![]() |
