Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,UKCA
Model Number: LP48V050
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 15-45 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Nominal Voltage: |
51.2V |
Nominal Capacity: |
30Ah 50Ah 100Ah 150Ah |
Case: |
Steel Case |
Dimension: |
Different Sizes Optional |
Cotinuous Current: |
50A-200A |
Peak Current: |
150A-900A |
Warranty: |
3 Years |
Nominal Voltage: |
51.2V |
Nominal Capacity: |
30Ah 50Ah 100Ah 150Ah |
Case: |
Steel Case |
Dimension: |
Different Sizes Optional |
Cotinuous Current: |
50A-200A |
Peak Current: |
150A-900A |
Warranty: |
3 Years |
48 volt lithium ion battery 48 volt golf cart battery charger for club car
Features of 48 volt lithium ion battery
For electric golf carts,there are two main types of batteries: lead-acid and lifepo4,why choose lifepo4 batteries?
Weight:Lifepo4 batteries are,in most cases,significantly lighter than lead-acid batteries.This allows lithium-ion carts to carry more extra weight and reach higher speeds more quickly.
Charges:Lifepo4 batteries not only charge faster than lead-acid batteries,but they also tend to last longer on a single charge and have a longer cycle life in general.
Maintenance:Lifepo4 batteries don’t need to be checked or maintained,unlike lead-acid batteries.
Lifepo4 batteries are also more eco-friendly because they require less energy to charge and don’t contain hazardous materials.
Specs of 48 volt lithium ion battery
| Technical Specification | |||||||
| VOLTAGE CAPACITY | 36V50Ah | 36V100Ah | 48V50Ah | 48V100Ah | 48V105Ah | 48V 200Ah | 72V 100Ah |
| Nominal voltage | 38.4V | 38.4V | 51.2V | 51.2V | 51.2V | 51.2V | 73.6V |
| Nominal capacity | 50Ah | 100Ah | 50Ah | 100Ah | 105Ah | 200Ah | 100Ah |
| Nominal energy | 1920Wh | 3840Wh | 1920Wh | 5120Wh | 5376Wh | 10240Wh | 7360Wh |
| CYCLE LIFE (capacity ≥ 80% of nominal) | |||||||
| 90% DoD | 2000 cycles | ||||||
| 80% DoD | 3000 cycles | ||||||
| 50% DoD | 6000 cycles | ||||||
| CHARGE | |||||||
| Charge voltage | 43.2V | 43.2V | 57.6V | 57.6V | 57.6V | 57.6V | 82.8V |
| Maximum continuous charge current |
50A | 100A | 50A | 100A | 100A | 200A | 100A |
| Recommended continuous charge current |
>25A | >50A | >25A | >50A | >50A | >100A | >50A |
| DISCHARGE | |||||||
| Maximum continuous discharge current |
100A | 200A | 100A | 200A | 200A | 200A | 150A |
| End of discharge voltage | 30V | 30V | 40V | 40V | 40V | 40V | 60V |
| OPERATING CONDITIONS | |||||||
| Operating temperature | Discharge: -20°C to +60°C Charge: +0°C to +45°C | ||||||
| Storage temperature | -45°C to +70°C | ||||||
| Humidity (non-condensing) | Max. 95% | ||||||
| Protection class | Steel Case | ||||||
| Other | |||||||
| Type Of Case | Steel | Steel | Steel | Steel | Steel | Steel | Steel |
| Terminal | M8 | M8 | M8 | M8 | M8 | M8 | M8 |
| Dimension (mm) | 385*338*245 | 385*338*245 | 472*334*247 | 472*334*247 | 472*334*247 | 840*270*295 | 740*320*250 |
| Weight (kg) | 27 | 24 | 35 | 43.6 | 43.6 | 95 | 64 |

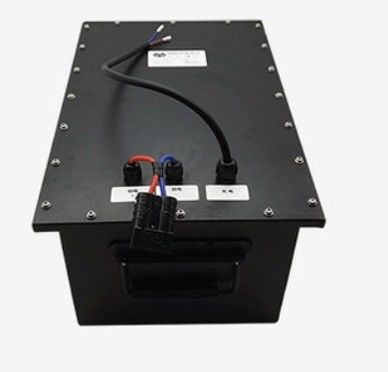

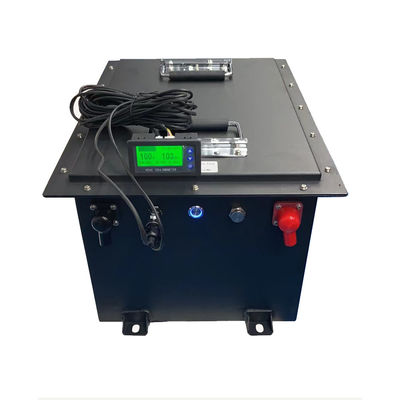

Picture of 48 volt lithium ion battery
Our LiFePo4 batteries are the perfect drop-in replacements for lead acid 6V and 8V batteries. They are the perfect combination of size and capacity to fit golf carts, They also offer ultra-fast charging, high efficiency, and longer cycle life – plus no maintenance! can suitable most of golf carts like Yamaha EZGO Club Car etc.
FAQ
Q: can you delivery to our address directly?
A: Yes,Most countries and city can make door to door delivery services. and some of places taxes for free.
Q: Can we customized sizes and capacity?
A: Sure customized sizes ,capacity, current and your logo.
Q: Dose it can with LCD or Bluetooth?
A: Yes,Both available
Q:Can you provide Battery charger also?
A: Yes we also can provide battery charger for you.
Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 if your order quantity is big.
