| Brand Name: | Leadyo |
| Model Number: | 48V 100Ah Marine Lifepo4 Batteries |
| MOQ: | 1 |
| Price: | 900 |
| Packaging Details: | UN3480 |
| Payment Terms: | TT/ Alipay |
- BLUETOOTH - iOS and Android Apps
- IP67 Rated, Dust and WATERPROOF
- Built-in Smart Battery Management System (BMS)
- Over charge and over discharge protection
- Over current and short circuit protection
- High & low temperature disconnects
- 6000+ Cycle life & Maintenance-free
Datasheet of 48V 100AH Lithium Marine ,Boat ,Outboard ,Yacht applications.
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 51.2V | Terminal Type | M8 | |
| Nominal Capacity | 100Ah | Weight | 38kg | |
| Nominal Energy | 5120Wh | Case Dimension(L*W*H) | 520*265*220mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS CASE | |
| Capacity | @10A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | NO | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 100A | Max Charge Current | 100A | |
| Peak Current | 300A | Recommended Charge Current | 20A - 50A | |
| Discharge pulse current | 500±50A (31±10ms) | End of Charge voltage | 57.6V±0.2V | |
| BMS Low Voltge Cut-off | 40V | End of discharge voltage | 40V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v/ cell | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||

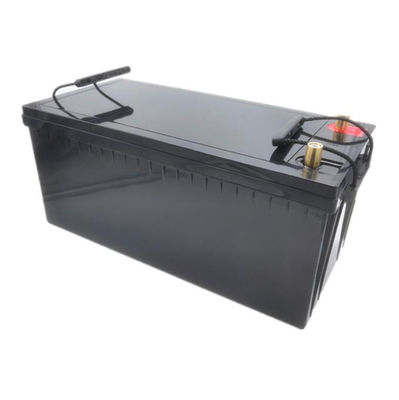

The Leadyo Power marine battery is engineered to provide consistent power output and reliable performance for extended periods of use, utilizing lifepo4 technology. Its IP67 rated construction and internal heating system allow for optimal performance in harsh environments. The built-in battery management system includes a variety of safety and performance enhancements, as well as Bluetooth connectivity. By pairing the battery with the Epoch Batteries app, available on the App Store and Google Play Store, users can access real-time monitoring, and other useful information. Additionally, our marine batteries utilize LiFePO4 chemistry to ensure maximum stability, fast charging, reduced weight, constant voltage, increased cycle life, and maintenance-free usage.
|
|
