Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,UKCA
Model Number: LP24V100
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 15-45 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Nominal Voltage: |
25.6V |
Nominal Capacity: |
100Ah |
Weight: |
22kg |
Dimension: |
350*312*190mm |
Current: |
100A Continuous Discharge |
Version: |
Can With Bluetooth Monitoring |
Nominal Voltage: |
25.6V |
Nominal Capacity: |
100Ah |
Weight: |
22kg |
Dimension: |
350*312*190mm |
Current: |
100A Continuous Discharge |
Version: |
Can With Bluetooth Monitoring |

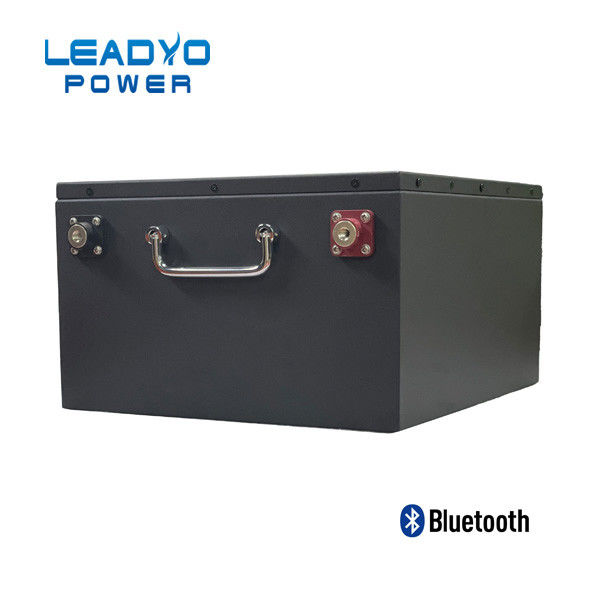

24V Lifepo4 Battery 12v 100ah 200ah lithium ion battery pack for rv
Lithium Iron Phosphate Battery 25.6 100Ah
Nominal Voltage 2560 V
Nominal Capacity 100 Ah
Capacity @ 20A 300 min
Energy 2560 Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Balancing function
With Smart BMS has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function
Application:Marine, RV,camping,Electric-fence, led light and other Solar/Wind Power system, Golf Cart, AGV, floor machines,Forklift, EV,E-bike, robot,power tooling, UPS, Medical and Military Equipment etc.
Smart BMS can be with Bluetooth,SMBus,HDQ,I2C,RS232,RS485 commnication.
Can make series up to 48V,parallel no limit.
All the BMS and PCM has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.
Built in heat sink With powerful cooling performance,
Support high current 500-800A Short circuit protection
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 25.6V | Terminal Type | M8 | |
| Nominal Capacity | 100Ah | Weight | 22kg | |
| Nominal Energy | 2560Wh | Case Dimension(L*W*H) | 350*312*190mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @20A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | 2PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 100A | Max Charge Current | 100A | |
| Peak Current | 300A | Recommended Charge Current | 20A - 50A | |
| Discharge pulse current | 500±50A (31±10ms) | End of Charge voltage | 28.8V±0.2V | |
| BMS Low Voltge Cut-off | 20V (2.0V±0.05v) pc) | Balancing current | Auto start | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 & BIS for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
FAQ
We ara leading battery manufacturer in China, it's a new hi-tech enterprise we focus on provide best battery solution for Boat ,RV,EV, Medical devices ,Robot,Off grid system, solar system and so on. besides we also one-stop-solution BMS manufacturer. It's good cost-down for both of us, the same time we can provide best battery solution for you.
2.What's your advantages?
Our Battery Packs with SmarTEC Custom-Made BMS ,share with you the internal structure of our products, Most customers choose our battery packs because our internal process is perfect, humanized, safe and our Advanced BMS system.Our BMS Technology (powered by Texas structure) is designed for the our battery packs,because We are TI's strategic partner in China. We buy tens of millions of TI's chips every year. We can directly provide the different test date to the TI company and they process in to the chip .. Together with our class a batteries (China Leading brand Cells like EVE,CALB,BYD, or Lishen ), we ensure that you have the good quality and competitive price solution.
3.How to get a quote?
