Shenzhen Leadyo Technology Co., Ltd.
Lithium Battery One-Stop Solution Manufacturer I 15 Years Experience
| Place of Origin: | China |
|---|---|
| Brand Name: | LEADYO |
| Certification: | UN38.3, CE,MSDS,UKCA |
| Model Number: | LP12V100 |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | UN3480 Standard Export |
| Delivery Time: | 15-45 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |
| Supply Ability: | 60Mwh |
| Nominal Voltage: | 12.8V | Nominal Capacity: | 100Ah |
|---|---|---|---|
| Weight: | 10.5kg | Dimension: | 325*170*215mm |
| Continous Current: | 100A | Series And Parallel: | Supported |
| Case: | Black Screwable ABS Case | ||
| High Light: | Bluetooth Lithium Battery 12V 100Ah,IP66 Bluetooth Lithium Battery,100Ah Lifepo4 Rechargeable Battery |
||

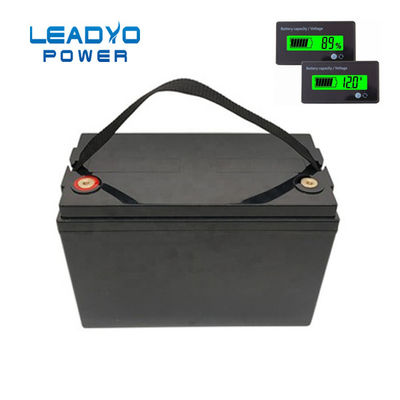

Bluetooth monitoring Lithium 12V 100Ah Lifepo4 Rechargeable Battery
The built in Bluetooth feature enables the monitoring of each battery State-of-Charge (SoC) via a Smartphone APP. The APP displays the Amps currently charging or discharging from the battery at a point in time, the voltage of the battery, SOC %, the temperature of the battery, the time to full charge, the time to full discharge and the number of charge/discharge cycles the battery has incurred.
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||

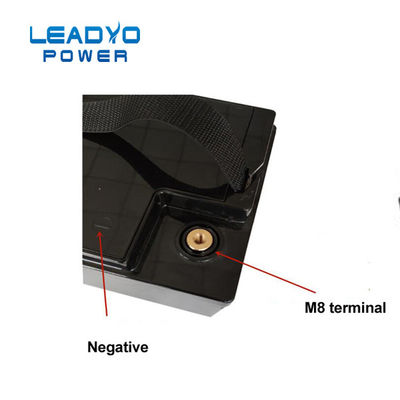

| Nominal Voltage | 12.8V | Terminal Type | M8 | |
| Nominal Capacity | 00Ah | Weight | 13kg | |
| Nominal Energy | 1280Wh | Case Dimension(L*W*H) | 330*175*210mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @20A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series and Parallel | NO | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 100A | Max Charge Current | 100A | |
| Peak Current | 300A | Recommended Charge Current | 20A - 50A | |
| Discharge pulse current | 500±50A (31±10ms) | End of Charge voltage | 14.4V±0.2V | |
| BMS Low Voltge Cut-off | 10V | End of discharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 & BIS for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
