Brand Name: | LEADYO |
Model Number: | LP48V50 |
MOQ: | 1pcs |
Price: | Negotiable |
Packaging Details: | UN3480 Standard Export |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |

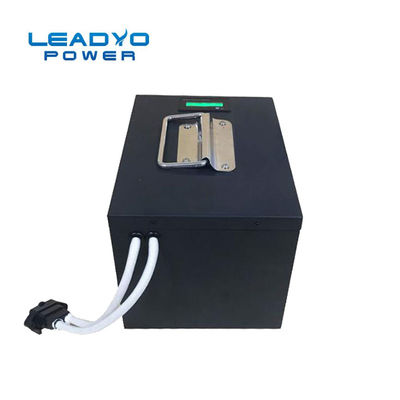

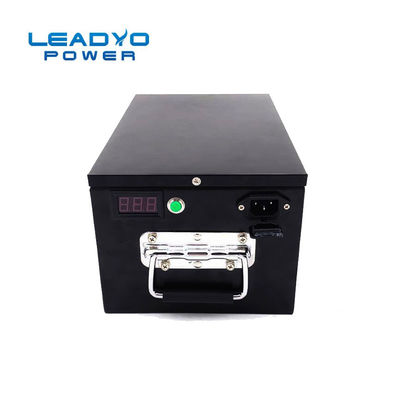

Golf cart battery 48V 50Ah lithium iron phosphate battery
Lifepo4 Batteries To Replace the AGM/ Lead Acid Batteries,
Self-developed BMS & high quality cells will be combined as "one-stop"solution .
To save your time & after-sales cost.
1) Steel Case design, Sturdy and Durable.
2) Handle design, easy to carry and install.
3) LCD Display, convenient to check the battery capacity status.
4), Light weight 48V 100Ah around 41kg only
5) With longer lifespan around 10 years.
Custom-made BMS With full over protection ,balancing function and short circuit protection
ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
Nominal Voltage | 51.2V | Terminal Type | M8 | |
Nominal Capacity | 50Ah | Weight | 25kg | |
Nominal Energy | 2560Wh | Case Dimension(L*W*H) | 400*198*235mm | |
Internal Resistance | ≤30 @50% SOC | Case Type | Metal | |
Capacity | @10A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
Maximum In Series | NO | BMS:low voltage,high voltage,over temperature, | ||
Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
MAX Continuous Discharge Current | 50A | Max Charge Current | 50A | |
Peak Current | 150A | Recommended Charge Current | 10A - 25A | |
Discharge pulse current | 180±50A (31±10ms) | End of Charge voltage | 57.6V±0.2V | |
BMS Low Voltge Cut-off | 40V | End of discharge voltage | 40V | |
Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v/ cell | |
Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
Discharge Temperature | -20~+65℃ | Certifications | CE for Battery Pack | |
Charge Temperature | -20~+45℃ | UL1642 & IEC62133 for cells | ||
Storage Temperature Range | -20~+45℃ | |||
BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
Battery High Temperature Protection | 60℃ |
