Shenzhen Leadyo Technology Co., Ltd.
Lithium Battery One-Stop Solution Manufacturer I 15 Years Experience
| Place of Origin: | China |
|---|---|
| Brand Name: | LEADYO |
| Certification: | UN38.3, CE,MSDS,UKCA |
| Model Number: | LP12V120 |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | UN3480 Standard Export |
| Delivery Time: | 15-45 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |
| Supply Ability: | 60Mwh |
| Nominal Voltage: | 12.8V | Nominal Capacity: | 120Ah |
|---|---|---|---|
| Weight: | 16kg | Dimension: | 330*175*210mm |
| Max Charge Current: | 150A | Max Discharge Current: | 150A |
| CaseABS Case: | ABS | ||
| High Light: | Bluetooth Marine Lifepo4 Batteries,120Ah Marine Lifepo4 Batteries,12V Lithium Iron Phosphate Marine Battery |
||

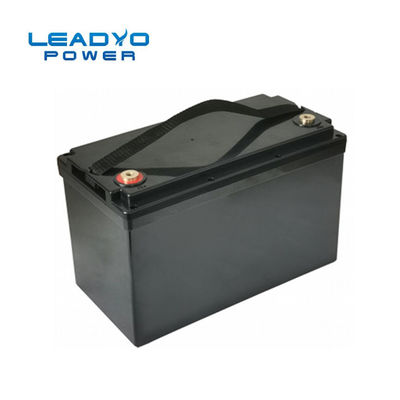

Bluetooth Marine Lithium Iron Phosphate Battery 12V 120Ah LifePO4 battery
Lithium Iron Phosphate Battery 12.8V 120Ah
Nominal Voltage 12.8V
Nominal Capacity 120 Ah
Capacity @ 24A 300 min
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Balancing function
With Smart BMS has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.
Bluetooth monitoring System:
Our LifePO4 comes with Bluetooth connectivity to monitor Hundreds of parameters via connected App available on Android and iOS.
The Bluetooth allows the user to conveniently monitor critical information about the battery, which includes charge, discharge, capacity, temperature, voltage and BMS safety features. It can also help if the battery has been placed in a hard to reach spot, like behind the seat or battery box, as monitoring can be achieved from 10 meters away.
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | M8 | |
| Nominal Capacity | 120Ah | Weight | 16kg | |
| Nominal Energy | 1536Wh | Case Dimension(L*W*H) | 330*175*210mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @25A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | 4PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 150A | Max Charge Current | 150A | |
| Peak Current | 300A | Recommended Charge Current | 25A - 60A | |
| Discharge pulse current | 500±50A (31±10ms) | End of Charge voltage | 14.4V±0.2V | |
| BMS Low Voltge Cut-off | 10V | End of discharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
