Shenzhen Leadyo Technology Co., Ltd.
| Place of Origin: | China |
|---|---|
| Brand Name: | LEADYO |
| Certification: | CE,MSDS,UN38.3 |
| Model Number: | LP12V150 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | standard export carton |
| Delivery Time: | 1-2weeks for samples; 3-4weeks for mass production |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |
| Supply Ability: | 60Mwh |
| Nominal Voltage: | 12.8V | Nominal Capacity: | 95Ah |
|---|---|---|---|
| Cells: | LifePO4 Cells | Weight: | 10.5kg |
| SizeSize: | 395*110*262 | Continuous Current: | 100A |
| Bluetooth APP: | LiFePO4 POWER APP | Keywords: | 12v Rechargeable Lithium Battery Pack |
| High Light: | 95Ah Slimline Lithium Battery,ABS Case Slimline Lithium Battery,12 Volt Rechargeable Lithium Battery Pack |
||

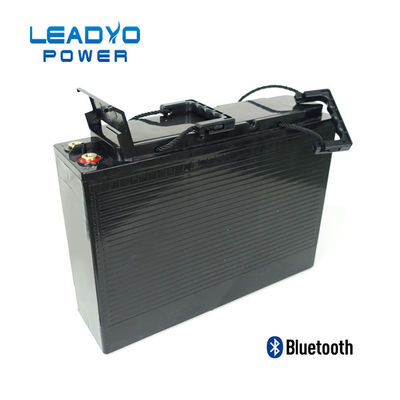

12v rechargeable lithium battery pack 95Ah Slimline Lithium Battery
Our advantages:
Products line:
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | M8 | |
| Nominal Capacity | 95Ah | Weight | 10.5kg | |
| Nominal Energy | 1216Wh | Case Dimension(L*W*H) | 395*110*262mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @16A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | 4 PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 100A | Max Charge Current | 100A | |
| Peak Current | 300A | Recommended Charge Current | 20A - 50A | |
| Discharge pulse current | 500±50A (31±10ms) | End of Charge voltage | 14.4V±0.2V | |
| BMS Low Voltge Cut-off | 10V | End of discharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
