Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,UKCA
Model Number: LP12V050
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 15-45 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Nominal Voltage: |
12.8V |
Nominal Capacity: |
50Ah |
Cells: |
LifePO4 Cells |
Weight: |
6.5kg |
SizeSize: |
277*106*223 |
Continuous Current: |
50A |
Pluse Current: |
100A/5S |
Bluetooth APP: |
With Bluetooth |
Application: |
RV,4WD, Camper, Marine |
Keywords: |
12.8V 50Ah Rechargeable Lithium Battery |
Nominal Voltage: |
12.8V |
Nominal Capacity: |
50Ah |
Cells: |
LifePO4 Cells |
Weight: |
6.5kg |
SizeSize: |
277*106*223 |
Continuous Current: |
50A |
Pluse Current: |
100A/5S |
Bluetooth APP: |
With Bluetooth |
Application: |
RV,4WD, Camper, Marine |
Keywords: |
12.8V 50Ah Rechargeable Lithium Battery |

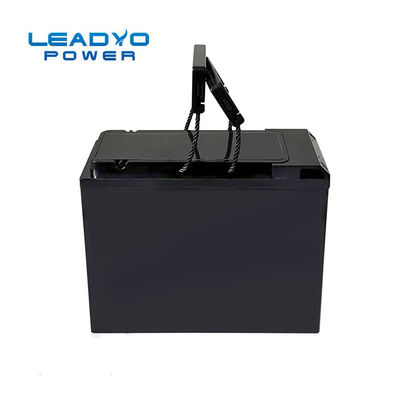

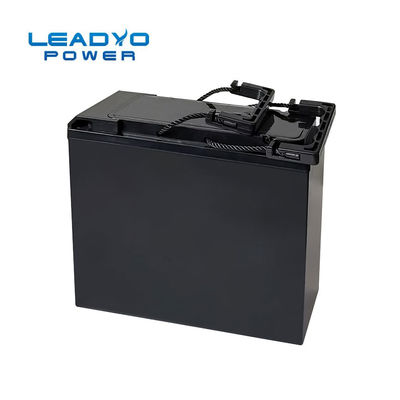

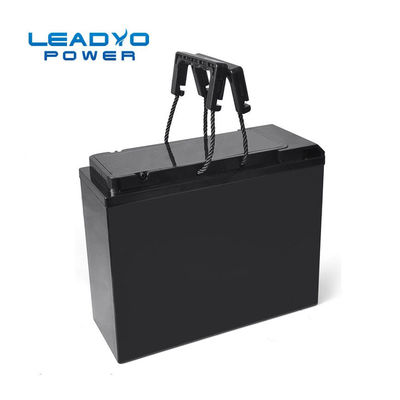

Bluetooth 12V Slimline LiFePO4 12.8V 50Ah rechargeable lithium battery
Our advantages:
Have s strong R&D Team
12 engineers with rich experience
Cooperate with 50+ world Famous Enterprises
Focus on high quality products
ODM /OEM Both acceptable
Customized and design to meet your demands
Competitive price and great quality
Self-developed BMS & Good sourcing of single cells
Good Warranty & Fast delivery
With full certificates help process fase shipping
Developed Original Bluetooth Systerm Manufacturer
Customized your brand APP
Battery Specs
ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
Nominal Voltage | 12.8V | Terminal Type | M6 | |
Nominal Capacity | 50Ah | Weight | 6.5kg | |
Nominal Energy | 640Wh | Case Dimension(L*W*H) | 277*106*233mm | |
Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
Capacity | @10A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
Maximum In Series | 4 PCS | BMS:low voltage,high voltage,over temperature, | ||
Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
MAX Continuous Discharge Current | 50A | Max Charge Current | 50A | |
Peak Current | 100A | Recommended Charge Current | 10A - 50A | |
Discharge pulse current | 180±30A (31±10ms) | End of Charge voltage | 14.4V±0.2V | |
BMS Low Voltge Cut-off | 10V | End of discharge voltage | 10V | |
Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
Discharge Temperature | -20~+65℃ | Certifications | CE for Battery Pack | |
Charge Temperature | -20~+45℃ | UL1642 & IEC62133 for cells | ||
Storage Temperature Range | -20~+45℃ | |||
BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
Battery High Temperature Protection | 60℃ |
