Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,UKCA
Model Number: LP12V100
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 15-45 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Nominal Voltage: |
12.8V |
Nominal Capacity: |
100Ah |
Weight: |
10.5kg |
Dimension: |
306*173*225mm |
Size: |
Group 27 Lithium Battery |
Continuous Current: |
100A |
Peak Current: |
500A |
Ip Rating: |
IP66 |
Capacity Optional: |
90-100Ah |
Nominal Voltage: |
12.8V |
Nominal Capacity: |
100Ah |
Weight: |
10.5kg |
Dimension: |
306*173*225mm |
Size: |
Group 27 Lithium Battery |
Continuous Current: |
100A |
Peak Current: |
500A |
Ip Rating: |
IP66 |
Capacity Optional: |
90-100Ah |

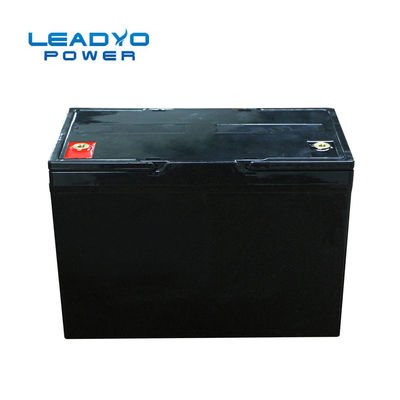

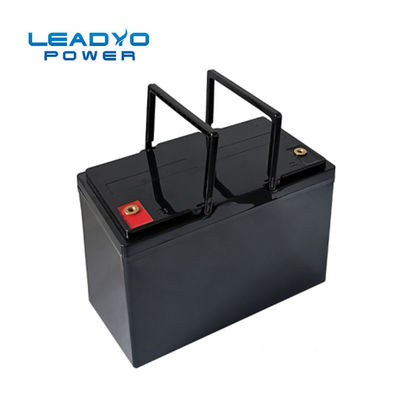

12v 100Ah Deep Cycle Marine & Solar Battery group 27 lithium battery
Why Are Lithium Iron Phosphate Batteries the Best Solar Batteries?
To understand why lithium iron phosphate batteries have become the new gold standard for renewable energy systems, it’s helpful to compare them to the previous standard battery type for these applications - lead acid.
Compared to lead acid, lithium solar batteries are:
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | M8 | |
| Nominal Capacity | 100Ah | Weight | 10.5kg | |
| Nominal Energy | 1280Wh | Case Dimension(L*W*H) | 306*173*225mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @20A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | 4PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 100A | Max Charge Current | 100A | |
| Peak Current | 300A | Recommended Charge Current | 20A - 50A | |
| Discharge pulse current | 500±50A (31±10ms) | End of Charge voltage | 14.4V±0.2V | |
| BMS Low Voltge Cut-off | 10V (2.0V±0.05v) pc) | Balancing current | Auto start | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 & BIS for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
