Shenzhen Leadyo Technology Co., Ltd.
Lithium Battery One-Stop Solution Manufacturer I 15 Years Experience
| Place of Origin: | China |
|---|---|
| Brand Name: | LEADYO |
| Certification: | UN38.3, CE,MSDS,UKCA |
| Model Number: | LP12V080-ST |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | UN3480 Standard Export |
| Delivery Time: | 15-45 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |
| Supply Ability: | 60Mwh |
| Nominal Voltage: | 12V | Nominal Capacity: | 80Ah |
|---|---|---|---|
| Weight: | 10kg | Dimension: | L280xW175xH189mm |
| Charge Current: | 50A | Discharge Current: | 100A |
| CCA: | 1200A | ||
| High Light: | Lifepo4 12 Volt Lithium Ion Car Battery,12 Volt Lithium Ion Car Battery 80ah,1200 Cold Cranking Amp Battery |
||

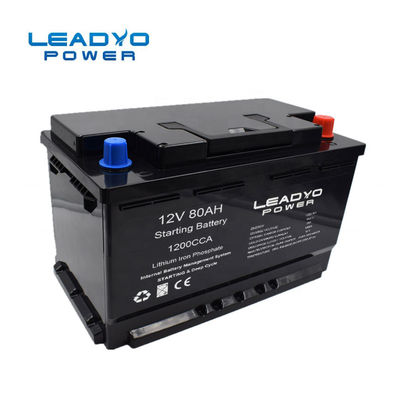

Lithium Car Battery 12v Stop Start 1200cca 80ah Light Weight Lifepo4 Battery
Lithium Iron Phosphate Battery 12.8V 80Ah
Nominal Voltage 12.8V
Nominal Capacity 80 Ah
Capacity @ 16A 300 min
Energy 1024 Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Features:
Light weight 12.8V LifePO4 Start -Stop High Performance LifePO4 battery which is replacement AGM Batteries.This battery features 200-1,600 Crank Amps and will have no trouble starting most conventional engines on the market today.
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | M8 | |
| Nominal Capacity | 60Ah | Weight | 7.5kg | |
| Nominal Energy | 768Wh | Case Dimension(L*W*H) | L280xW175xH189mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @14A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | NO | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 100A | Max Charge Current | 50A | |
| CCA | 850A | Recommended Charge Current | 15A - 30A | |
| Discharge pulse current | 1200±50A (31±10ms) | End of Charge voltage | 14.6V | |
| BMS Low Voltge Cut-off | 10V | End of disCharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
More models
| Voltage | Capacity | CCA | Weight | Dimension |
| 12V | 20Ah | 400A | 3kg | L244*W176*H197mm |
| 12V | 40Ah | 600-800A | 5kg | L244*W176*H197mm |
| 12V | 60Ah | 800-1000A | 7kg | L278*W176*H172mm |
| 12V | 80Ah | 1200A | 10kg | L280xW175xH189mm |
| 12V | 100Ah | 1200A | 13kg | L355xW175xH188mm |
| 12V | 120Ah | 1600A | 16kg | L398xW175xH188mm |
FAQ
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A. Sample needs 3-7 days, mass production time needs 3-5weeks, it depends on order quantity.
Q3. How do you ship the goods and how long does it take to arrive?
A.samples usually takes 5-7 days to arrive by express. bulk order for sea shipping take about one month.
Q4.Which certificates do you have?
A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.
Q5.How about warranty?
A:3 year warranty
