| Brand Name: | LEADYO |
| Model Number: | LP12V200 |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | UN3480 Standard Export |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |

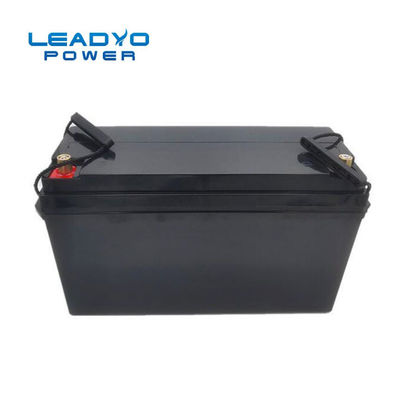

12V 200Ah Lithium Iron Phosphate liFePo4 battery for marine boat
Leadyo is a technical manufacturer specializing in the development and production of BMS and lithium-ion batterieswhich has more than 15 years of industry experience in China, focusing on the application of lithium ion, lithium iron phosphate, and lithium titanate batteries.The company was established in 2007, has passed ISO9001: 2015 quality system certification. Products are widely used in electric bicycles, electric motorcycles, low-speed vehicles, golf carts, patrol cars, AGVs, UPS, base stations, home energy storage, medical equipment and various customized products. Our company will provide the best for customer needs of battery energy storage solutions.
Lithium Iron Phosphate Battery 12V 200Ah
Nominal Voltage 12.8V
Nominal Capacity 200 Ah
Capacity @ 40A 300 min
Energy 2560 Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | M8 | |
| Nominal Capacity | 200Ah | Weight | 21kg | |
| Nominal Energy | 2560Wh | Case Dimension(L*W*H) | 480*170*240mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @40A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | 4PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 150A | Max Charge Current | 150A | |
| Peak Current | 300A | Recommended Charge Current | 40A - 100A | |
| Discharge pulse current | 500±50A (31±10ms) | End of Charge voltage | 14.4V±0.2V | |
| BMS Low Voltge Cut-off | 10V | End of discharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
FAQ
We ara leading battery manufacturer in China,Is a high-tech enterprise, specializing in R&D and marketing of Lithium rechargeable battery products.
2. What's the MOQ?
There is no MOQ for samples. For bulk order quantity, the more, the cheaper.
3. How long of the shipping time?
It always needs 3-10 days by express such as DHL and UPS, 20-30 days by sea.
4. Can you produce the order with the customer's brand?
Yes, of course. OEM & ODM service is warmly provided.
|
