Shenzhen Leadyo Technology Co., Ltd.
Lithium Battery One-Stop Solution Manufacturer I 15 Years Experience
| Place of Origin: | China |
|---|---|
| Brand Name: | LEADYO |
| Certification: | UN38.3, CE,MSDS,UKCA |
| Model Number: | LP48V100 |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | UN3480 Standard Export |
| Delivery Time: | 15-45 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |
| Supply Ability: | 60Mwh |
| Nominal Voltage: | 51.2V | Nominal Capacity: | 100Ah |
|---|---|---|---|
| Weight: | 41kg | Dimension: | 550*305*260mm |
| Current: | 100A | With Handler: | YES |
| Case: | Metal Case | Colors: | Black/Blue/Silver Customized |
| Application: | Golf Cart Battery | ||
| High Light: | LCD Display LiFePO4 Golf Cart Battery,100Ah LiFePO4 Golf Cart Battery,Lithium Ion Golf Cart Batteries 48V |
||

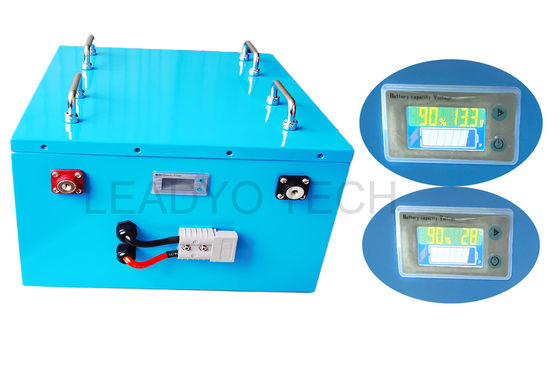

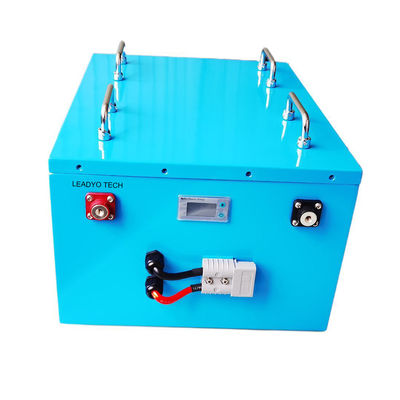

LCD display 48V 100Ah Lithium Ion Golf Cart Batteries for club car golf cart
Leadyo golf carts batteries are designed to replace the lead-acid battery, which are available for drop-in replacement in the Club Car and EZ-GO etc. vehicles nicely. 12-48V series products are lithium-ion battery packs with integrated golf cart battery system.
1) Metal Case design, Sturdy and Durable.
2) Handle design, easy to carry and install.
3) LCD Display, convenient to check the status.
4), Light weight 48V 100Ah around 41kg only
5) With longer lifespan more than 10 years.
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 51.2V | Terminal Type | M8 | |
| Nominal Capacity | 100Ah | Weight | 41kg | |
| Nominal Energy | 5120Wh | Case Dimension(L*W*H) | 550*305*260mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | Metal | |
| Capacity | @10A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | NO | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 100A | Max Charge Current | 100A | |
| Peak Current | 300A | Recommended Charge Current | 20A - 50A | |
| Discharge pulse current | 500±50A (31±10ms) | End of Charge voltage | 57.6V±0.2V | |
| BMS Low Voltge Cut-off | 40V | End of discharge voltage | 40V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v/ cell | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
