| Brand Name: | LEADYO |
| Model Number: | LP36V080 |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | UN3480 Standard Export |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |

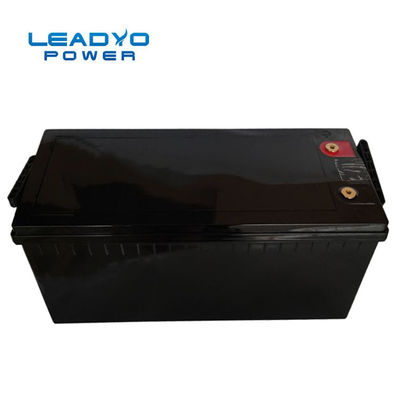

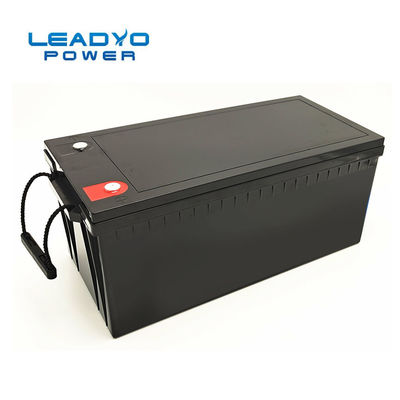

36v 80Ah LiFePO4 Battery Deep Cycle Lithium iron phosphate battery
The 36V 80Ah Lithium Phosphate battery is powerful and made as a premium LiFePO4 battery and it is ready to plug and play. Great battery for marine trolling motors, solar energy storage and golf cart applications. The 36V80Ah is a single module and weight less and occupies less space than three 12v100AH connected in series. It is better to use the right voltage battery for your application instead of connecting lithium batteries in series.
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 38.4V | Terminal Type | M8 | |
| Nominal Capacity | 80Ah | Weight | 30kg | |
| Nominal Energy | 3072Wh | Case Dimension(L*W*H) | 525*234*220mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @10A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series and Parallel | NO | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 100A | Max Charge Current | 100A | |
| Peak Current | 300A | Recommended Charge Current | 16A - 40A | |
| Discharge pulse current | 500±50A (31±10ms) | End of Charge voltage | 43.2V±0.2V | |
| BMS Low Voltge Cut-off | 30V (2.0V±0.05v) pc) | Balancing current | Auto start | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
FAQ
|
