Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,UKCA
Model Number: LP36V100
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 15-45 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Nominal Voltage: |
38.4V |
Nominal Capacity: |
100Ah |
Weight: |
30kg |
Dimension: |
525*234*220mm |
Current: |
100A |
Pluse Current: |
300A/10S |
Bluetooth: |
Built In |
Nominal Voltage: |
38.4V |
Nominal Capacity: |
100Ah |
Weight: |
30kg |
Dimension: |
525*234*220mm |
Current: |
100A |
Pluse Current: |
300A/10S |
Bluetooth: |
Built In |
Energy Trolling Motor 36V 100Ah lithium iron phosphate cells lfp battery

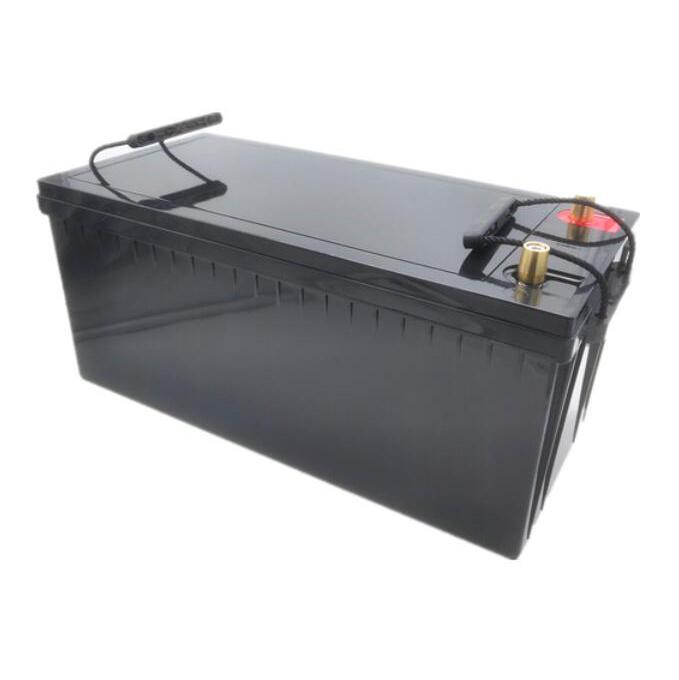

Lithium Iron Phosphate Battery 36V 100Ah
Nominal Voltage 38.4V
Nominal Capacity 100 Ah
Capacity @ 20A 300 min
Energy 3840 Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Balancing function
With Smart BMS has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.
Features:
The Leadyo 36V 100Ah Li-ion Battery is a state of the art rechargeable battery pack made with Lithium Iron Phosphate cells designed for 36V devices. It is perfect for e-scooters, e-bikes, solar applications, robots, and other applications that require a higher-energy density battery.
The Leadyo battery has a built in battery management system (BMS) that keeps the battery running at peak performance and protects the cells for thousands of cycles, including over-charge, over-discharge, over-current, and short-circuit protection.
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 38.4V | Terminal Type | M8 | |
| Nominal Capacity | 100Ah | Weight | 30kg | |
| Nominal Energy | 3840Wh | Case Dimension(L*W*H) | 525*234*220mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @20A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series and Parallel | NO | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 150A | Max Charge Current | 150A | |
| Peak Current | 500A | Recommended Charge Current | 20A - 50A | |
| Discharge pulse current | 700±100A (31±10ms) | End of Charge voltage | 43.2V±0.2V | |
| BMS Low Voltge Cut-off | 30V (2.0V±0.05v) pc) | Balancing current | Auto start | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
FAQ
1. How about the quality&warranty time?
100% full inspection and All products provided 24 months warranty.
2. What's the MOQ?
There is no MOQ for samples.
3. How about the lead time?
samples 5-10days, bulk order 3-5 weeks
4. How long of the shipping time?
It always needs 3-10 days by express such as DHL and UPS, 20-30 days by sea.
5. Can you produce the order with the customer's brand?
Yes, of course. OEM & ODM service is warmly provided.
