Home > products > 24V 36V 48V Batteries > 5KWH 10KWH 200Ah 48V Lithium Ion Battery Pack For Golf Cart off grid system

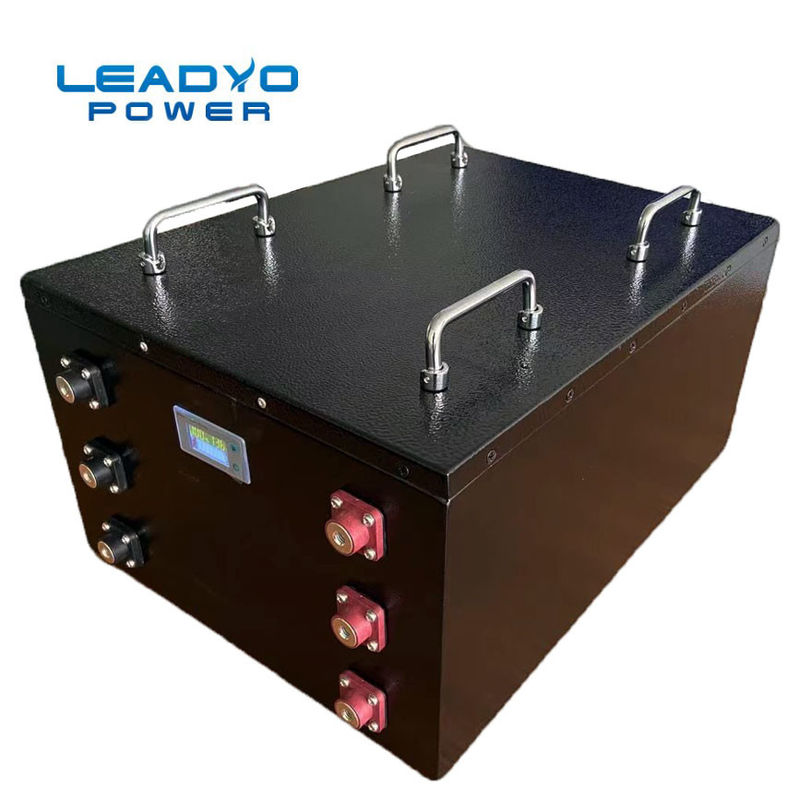

5KWH 10KWH 200Ah 48V Lithium Ion Battery Pack For Golf Cart off grid system

Product Details

Place of Origin: China

Brand Name: LEADYO

Certification: UN38.3, CE,MSDS,UKCA

Model Number: LP48V200

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiable

Packaging Details: UN3480 Standard Export

Delivery Time: 15-45 Days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online

Supply Ability: 60Mwh

Get Best Price
Highlight: 48V 5KWH 10KWH 200Ah Lithium Ion Battery Pack For Off Grid System
Nominal Voltage:
51.2V
Nominal Capacity:
200Ah
Weight:
80kg
Dimension:
705*305*260mm
Max Charge Current:
200A
Max Discharge Current:
200A
CaseABS Case:
Metal Case
Nominal Voltage:
51.2V
Nominal Capacity:
200Ah
Weight:
80kg
Dimension:
705*305*260mm
Max Charge Current:
200A
Max Discharge Current:
200A
CaseABS Case:
Metal Case
5KWH 10KWH 200Ah 48V Lithium Ion Battery Pack For Golf Cart off grid system



48V 5KWH 10KWH 200Ah lithium ion battery pack for off grid system





Lithium Iron Phosphate Battery 48V 200Ah 10KWH



Nominal Voltage 48V

Nominal Capacity 200 Ah

Capacity @ 40A 300 min

Energy 10240 Wh

Resistance ≤30 mΩ @ 50%

SOC Self Discharge <3% / Month

Balancing function

With Smart BMS has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.



Features:



If you’re looking for energy storage for your residential solar system for grid-tie or off-grid, this 48V lithium battery is a great option. Deep cycle batteries are a key component in off-grid solar electric systems, and for grid-tie or emergency backup power systems with or without solar. For renewable energy systems, the 48V100 battery is compatible with Outback, Schneider Electric, Magnum, Morningstar and many other leading brands of inverters and solar charge controllers.



ELECTRICAL SPECIFICATIONS   MECHANICAL SPECIFICATIONS
Nominal Voltage 51.2V   Terminal Type M8
Nominal Capacity 200Ah   Weight 80kg
Nominal Energy 10.24KWh   Case Dimension(L*W*H) 705*305*260mm
Internal Resistance ≤30 @50% SOC   Case Type ABS
Capacity @40A: 300minutes(5hours)   Cell type / Chemistry LiFePO4
Self Discharge 5% /per month   LCD or Bluetooth Function Optional
Maximum In Series  NO   BMS:low voltage,high voltage,over temperature,
Maximum In Parallel No limit   Over current,short-circuit protection .etc
Discharge Current and Voltage Specifications   Charge Current and Voltage Specifications
MAX Continuous Discharge Current 200A   Max Charge Current 200A
Peak Current 500A   Recommended Charge Current 40A - 100A
Discharge pulse current 800±50A (31±10ms)   End of Charge voltage 57.6V±0.2V
BMS Low Voltge Cut-off 40V   End of discharge voltage 40V
Short Circuit Protection 200-800 µs Auto recover or charge release   Balancing Voltage 3.6V±0.05v pc
Temperature Ranges   COMPLIANCE SPECIFICATIONS
Discharge Temperature -20+65   Certifications CE for Battery Pack
Charge Temperature -20+45   UL1642 & IEC62133 for cells
Storage Temperature Range -20+45
BMS High Temperature Protection 90   Shipping classification UN 3480
Battery High Temperature Protection 60





5KWH 10KWH 200Ah 48V Lithium Ion Battery Pack For Golf Cart off grid system 0



FAQ



Q. What warranty do I have?
A: Warranty: 3 years, we would provide repair or replacement with the warranty period.



Q. Do you have Blue-tooth communication with your batteries?
A: Yes, please let us know if you NEED to add Blue-tooth communication with the batteries. and YOU can rename your battery in the App.



Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 etc.



Q:Do you have MOQ ?
A:No limited. Small order also welcome.More quantity has better price, we will check the best price for you.



Q. If your lithium battery goes into protection mode, how do you wake it up?
A: Using lithium chargers to wake up the battery. The lithium charger wakes up the batteries automatically.
