Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,UKCA
Model Number: LP12V040
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 15-45 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Nominal Voltage: |
12.8V |
Nominal Capacity: |
40Ah |
Weight: |
5kg |
Dimension: |
L244*W176*H197mm |
Max Charge Current: |
40A |
Max Discharge Current: |
40A |
CCA: |
600A |
Ip Rating: |
IP66 Tested |
Group Size Optional: |
24' 27' 31' 34' Etc |
Nominal Voltage: |
12.8V |
Nominal Capacity: |
40Ah |
Weight: |
5kg |
Dimension: |
L244*W176*H197mm |
Max Charge Current: |
40A |
Max Discharge Current: |
40A |
CCA: |
600A |
Ip Rating: |
IP66 Tested |
Group Size Optional: |
24' 27' 31' 34' Etc |

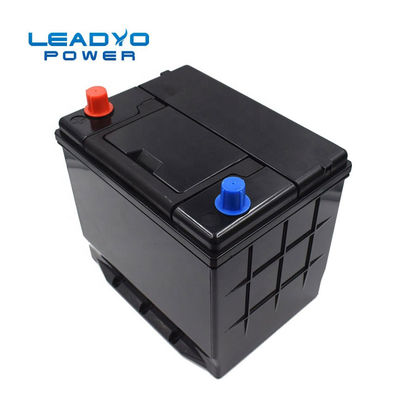

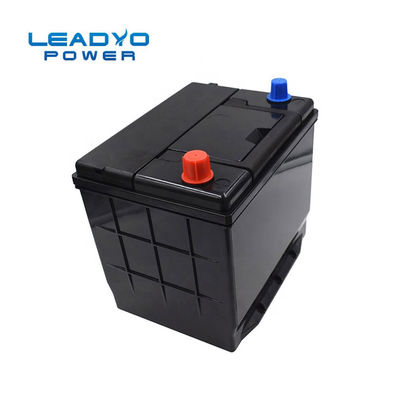

LiFePO4 12V 40Ah 600CCA Lithium ion Automotive Battery For Car marine.
12V with 200 400 600 800 1200 Cranking Amps Repalce lead acid batteries.
With the lead battery ,each crank is removing energy from the battery, and the voltage is dropping as the energy is being removed. This causes a reduction in the available power in the next crank and eventually the lead acid battery cannot crank anymore. With the lithium battery ,the energy is also being removed but the voltage doesn't drop. so, in the lithium battery, each crank will deliver approximately the same amount of power,the battery provides constant voltage across the discharge which means it provides the same amount of power from the first crank through to the last crank before needing to be charged again.
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | M8 | |
| Nominal Capacity | 40Ah | Weight | 5kg | |
| Nominal Energy | 512Wh | Case Dimension(L*W*H) | L244*W176*H197mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @8A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | NO | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 40A | Max Charge Current | 40A | |
| CCA | 600A | Recommended Charge Current | 8A - 20A | |
| Discharge pulse current | 1000±50A (31±10ms) | End of Charge voltage | 14.6V | |
| BMS Low Voltge Cut-off | 10V | End of disCharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
