| Brand Name: | LEADYO |
| Model Number: | LP12V120 |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | UN3480 Standard Export |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |

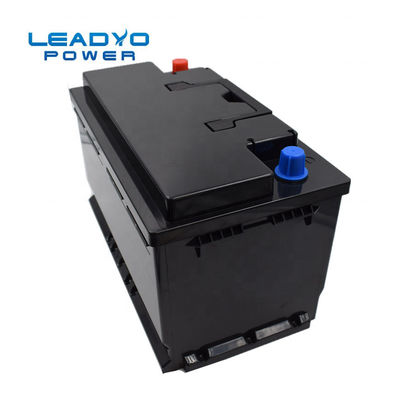

12Volt 100Ah 120Ah Best Dual Purpose Marine Battery For Boat Starting
Key Features of our 12V Starting Battery:
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | M8 | |
| Nominal Capacity | 120Ah | Weight | 16kg | |
| Nominal Energy | 1536Wh | Case Dimension(L*W*H) | L398xW175xH188mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @24A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | NO | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 100A | Max Charge Current | 50A | |
| CCA | 1600A | Recommended Charge Current | 24A - 60A | |
| Discharge pulse current | 1800±50A (31±10ms) | End of Charge voltage | 14.6V | |
| BMS Low Voltge Cut-off | 10V | End of disCharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
FAQ
1. How about the quality&warranty time?
100% full inspection and All products provided 24 months warranty.
2. What's the MOQ?
There is no MOQ for samples. For bulk order quantity price will be more favorite.
3. How about the lead time?
samples normaly need take 5-10days, bulk order 3-5 weeks
4. How long of the shipping time?
It always needs 3-10 days by express such as DHL and UPS, 20-30 days by sea.
5. Can you produce the order with the customer's brand?
Yes, of course. OEM & ODM service both available
|
|
