Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,UKCA
Model Number: LP12V200
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 15-45 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Nominal Voltage: |
12.8V |
Nominal Capacity: |
200Ah |
Weight: |
21kg |
Size350*312*190mm: |
350*312*190mm |
Continuous Charge Current: |
150A |
Continuous Discharge Current: |
150A |
Case: |
Matal Case |
Display: |
LCD Display |
Cycles: |
Over 5000 Times |
Nominal Voltage: |
12.8V |
Nominal Capacity: |
200Ah |
Weight: |
21kg |
Size350*312*190mm: |
350*312*190mm |
Continuous Charge Current: |
150A |
Continuous Discharge Current: |
150A |
Case: |
Matal Case |
Display: |
LCD Display |
Cycles: |
Over 5000 Times |

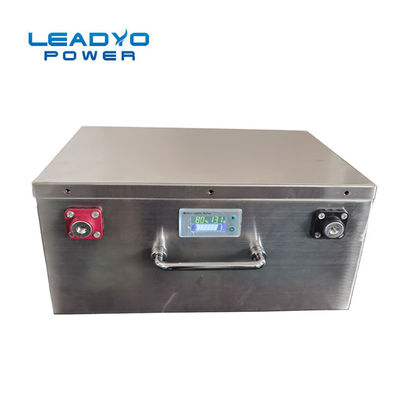

12V 200Ah underseat RV LiFePo4 batery for Caravan Motorhome Camper
12V 200Ah 350*312*190mm Underseat liFePO4 Battery for caravan, camper, 4WD ,Marine etc.You can now enjoy a lightweight battery that will simply drop in as a direct replacement for your traditional lead acid battery.
Lithium iron phosphate battery a safer, more lightweight alternative to lead-acid in your marine, solar, RV,Golf car or other applications. It maintains a consistent power and is equipped and a built-in smart bluetooth Communication battery management system (BMS). it is very popular now.The Lithium iron phosphate battery also can inparallel and in series.it is easy work.
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | M8 | |
| Nominal Capacity | 200Ah | Weight | 21kg | |
| Nominal Energy | 2560Wh | Case Dimension(L*W*H) | 350*312*190mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @40A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | 4PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 150A | Max Charge Current | 150A | |
| Peak Current | 500A | Recommended Charge Current | 40A - 100A | |
| Discharge pulse current | 700±5A (31±10ms) | End of Charge voltage | 14.4V±0.2V | |
| BMS Low Voltge Cut-off | 10V | End of discharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 & BIS for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
