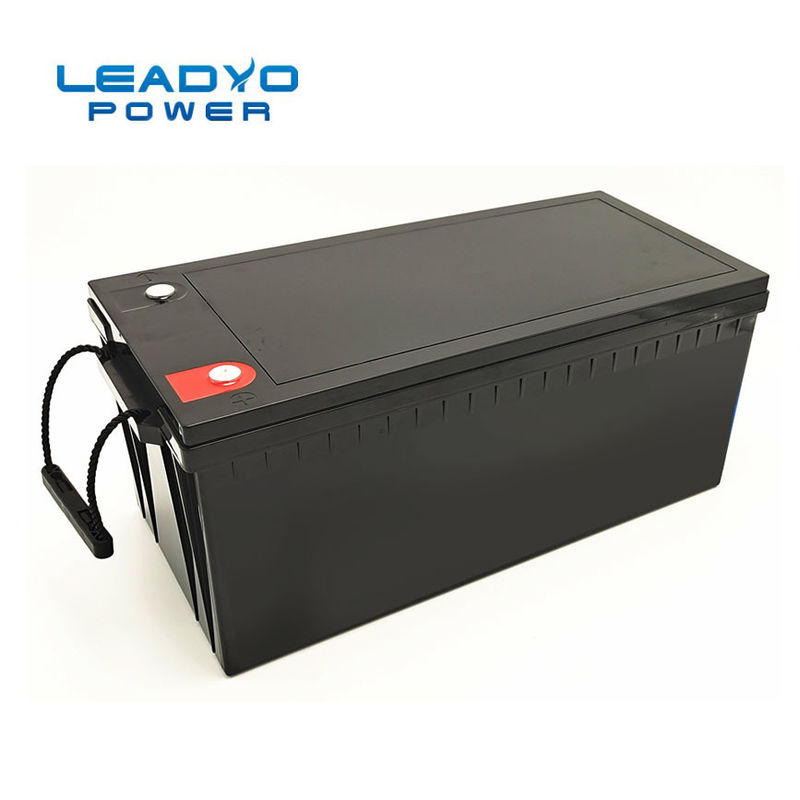

Smart Lifepo4 12V 300ah Lithium Ion Battery Bluetooth BMS For Marine Boat

Product Details

Place of Origin: China

Brand Name: LEADYO

Certification: UN38.3, CE,MSDS,UKCA

Model Number: LP12V300-BT

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiable

Packaging Details: UN3480 Standard Export

Delivery Time: 15-45 Days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online

Supply Ability: 60Mwh

Get Best Price
Highlight: Smart 12.8V Lifepo4 12v 300ah Lithium Ion Battery For Marine Boat
Voltage:
12.8V
Capacity:
300Ah
Gross Weiht:
36kg
Size:
520*267*220mm
Continuous Current:
150A
Terminal:
M8
BMS:
Bluetooth BMS
Voltage:
12.8V
Capacity:
300Ah
Gross Weiht:
36kg
Size:
520*267*220mm
Continuous Current:
150A
Terminal:
M8
BMS:
Bluetooth BMS
Smart Lifepo4 12V 300ah Lithium Ion Battery Bluetooth BMS For Marine Boat



Smart 12.8V Lifepo4 12v 300ah Lithium Ion Battery for Marine boat





Lithium Iron Phosphate Battery 12.8V 300Ah



Nominal Voltage 12.8V

Nominal Capacity 300 Ah

Capacity @ 50A 300 min

Energy 3840 Wh

Resistance ≤30 mΩ @ 50%

SOC Self Discharge <3% / Month

Balancing function





Features of Our 12.8V Lifepo4 12v 300ah Lithium Ion Battery:

  • Can With Bluetooth RS485, RS2321,SMbus,I2C etc
  • Can make 4pcs in series
  • Parallel no limit,can parallel batteries increased the capacity
  • Built in battery management system,has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.
  • can with high/low temperature cut off
  • With CE,IP66,UN38.3 and MSDS.
  • our BMS has the short circuit function ,when user connect Pos and Neg together without damaging the cells and bms.



ELECTRICAL SPECIFICATIONS   MECHANICAL SPECIFICATIONS
Nominal Voltage 12.8V   Terminal Type M8
Nominal Capacity 300Ah   Weight



36kg

Nominal Energy 3840Wh   Case Dimension(L*W*H) 520*267*220mm
Internal Resistance ≤30 @50% SOC   Case Type ABS
Capacity @60A: 300minutes(5hours)   Cell type / Chemistry LiFePO4
Self Discharge 5% /per month   LCD or Bluetooth Function Optional
Maximum In Series  4PCS   BMS:low voltage,high voltage,over temperature,
Maximum In Parallel No limit   Over current,short-circuit protection .etc
Discharge Current and Voltage Specifications   Charge Current and Voltage Specifications
MAX Continuous Discharge Current 150A   Max Charge Current 150A
Peak Current 500A   Recommended Charge Current 60A - 150A
Discharge pulse current 700±50A (31±10ms)   End of Charge voltage 14.4V±0.2V
BMS Low Voltge Cut-off 10V    End of discharge voltage 10V
Short Circuit Protection 200-800 µs Auto recover or charge release   Balancing Voltage 3.6V±0.05v pc
Temperature Ranges   COMPLIANCE SPECIFICATIONS
Discharge Temperature -20+65   Certifications CE for Battery Pack
Charge Temperature -20+45   UL1642 & IEC62133 & BIS for cells
Storage Temperature Range -20+45
BMS High Temperature Protection 90   Shipping classification UN 3480
Battery High Temperature Protection 60



Smart Lifepo4 12V 300ah Lithium Ion Battery Bluetooth BMS For Marine Boat 0

FAQ



Q: Does Polinovel support door to door shipping?
A: Yes. Normally if battery unit weight is below 30kg, we can delivery it to the destination address via Air Express. If battery unit weight is above 30kg, we delivery it via sea shipping. If you want to us to help you to make custom clearance, we would like to do that.



Q.: How can I resell lithium batteries well in my market ?
A.: Do market research, set your focus application field,learn more knowledge about lithium battery. build your own brand. We can work together with you to explode the market.

Q. What is your warranty?
A: Our standard warranty is 2 years. Our battery lifespan can be used for at least 8 years for normal 1 cycles per day. We have a complete warranty policy documents, please feel free to contact us to get it.
......
Your inquiries or questions are welcome, we will reply you quickly !
