Place of Origin: | China |
---|---|
Brand Name: | LEADYO |
Certification: | CE,MSDS |
Model Number: | LP36V100 |
Minimum Order Quantity: | 1 |
Price: | Negotiable |
Packaging Details: | standard export carton |
Delivery Time: | 1-2weeks for samples; 3-4weeks for mass production |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |
Supply Ability: | 60Mwh |
Nominal Voltage: | 36V | Nominal Capacity: | 100Ah |
---|---|---|---|
Weight: | 36kg | Dimension: | 550*305*260mm |
Current: | 100A | Pluse Current: | 350A |
Case: | Matal Case | Terminal: | M8 |
Display: | LCD Display | ||
High Light: | OEM LiFePO4 Golf Cart Battery,36V LiFePO4 Golf Cart Battery,36V Lithium Golf Cart Battery |

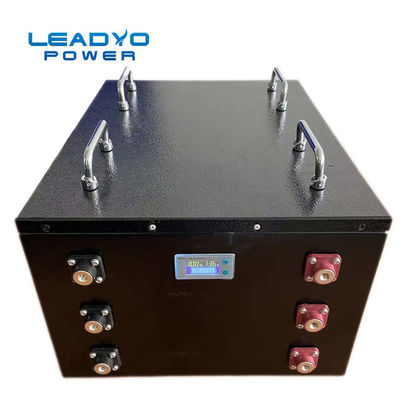

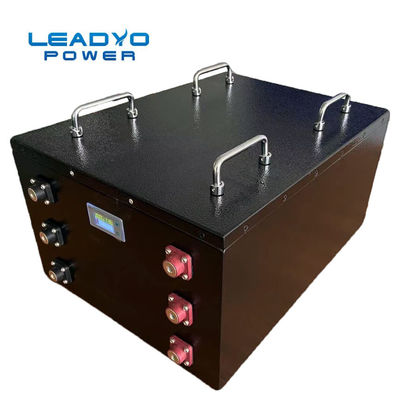

OEM high temperature protection Electric 36V 100Ah LiFePO4 Golf Cart Batteries
benefit the most from LiFePO4 lithium batteries; far superior to lithium-ion batteries. Safer and non-explosive, lighter (& smaller) which contributes to more mileage on a single charge, stronger acceleration without the bog-downs on hills, less charging time, maintenance-free, and maybe most important, a longer life span saving you money and time due to no need to make multiple battery replacements. Add reliability and the fact that you get the same voltage all the time (no drop on voltage), protects the entire system and motor.
ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
Nominal Voltage | 38.4V | Terminal Type | M8 | |
Nominal Capacity | 100Ah | Weight | 30kg | |
Nominal Energy | 3840Wh | Case Dimension(L*W*H) | 550*305*260mm | |
Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
Capacity | @20A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
Maximum In Series and Parallel | NO | BMS:low voltage,high voltage,over temperature, | ||
Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
MAX Continuous Discharge Current | 100A | Max Charge Current | 100A | |
Peak Current | 350A | Recommended Charge Current | 20A - 50A | |
Discharge pulse current | 500±50A (31±10ms) | End of Charge voltage | 43.2V±0.2V | |
BMS Low Voltge Cut-off | 30V (2.0V±0.05v) pc) | Balancing current | Auto start | |
Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
Discharge Temperature | -20~+65℃ | Certifications | CE for Battery Pack | |
Charge Temperature | -20~+45℃ | UL1642 & IEC62133 for cells | ||
Storage Temperature Range | -20~+45℃ | |||
BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
Battery High Temperature Protection | 60℃ |
OEM Electric 36V 100Ah LiFePO4 Golf Cart Batteries
