| Brand Name: | LEADYO |
| Model Number: | LP36V050 |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | UN3480 Standard Export |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |

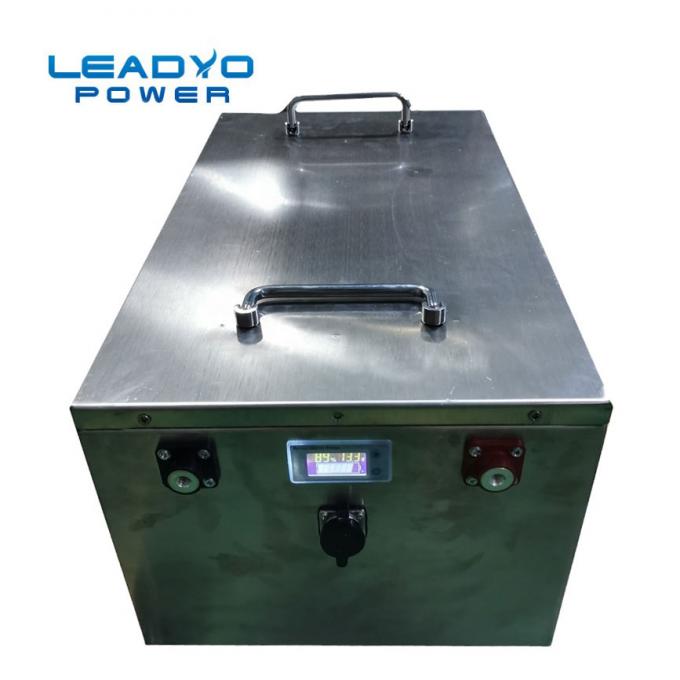

36V 50Ah rechargeable liFePO4 Lithium Ion Golf Cart Batteries
Key Features:
1) Metal Case design, Sturdy and Durable.
2) Handle design, easy to carry and install.
3) LCD Display, convenient to check the status.
4), Light weight 36V 500Ah around 19kg only
5) With longer lifespan more than 10 years.
6) Can customized colors and dimension according to your requirements
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 38.4V | Terminal Type | M8 | |
| Nominal Capacity | 50Ah | Weight | 19kg | |
| Nominal Energy | 1920Wh | Case Dimension(L*W*H) | 345*173*160mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | Metal | |
| Capacity | @20A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series and Parallel | NO | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 50A | Max Charge Current | 50A | |
| Peak Current | 100A | Recommended Charge Current | 10A - 25A | |
| Discharge pulse current | 180±30A (31±10ms) | End of Charge voltage | 43.2V±0.2V | |
| BMS Low Voltge Cut-off | 30V (2.0V±0.05v) pc) | Balancing current | Auto start | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
36V 50Ah rechargeable liFePO4 Lithium Ion Golf Cart Batteries
