| Brand Name: | LEADYO |
| Model Number: | LP48V200 |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | UN3480 Standard Export |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |

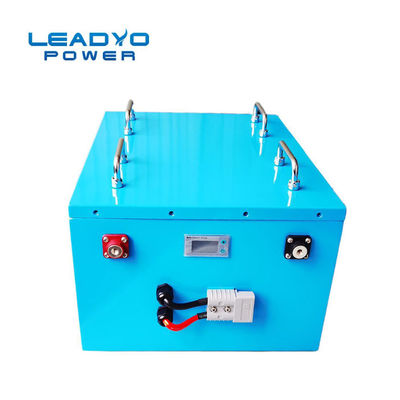

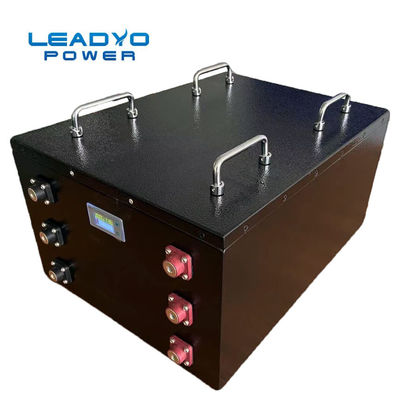

Forklift Battery 5kwh 48V 200ah LiFePO4 Battery Pack for Forklift
Leadyo lithium ion batteries as a DC power widely supplied in forklifts, tractors and other equipment. Widely used in airports,stations, ports, vegetables and fruit market, factory warehouses and so on. At the same time, it widely used in buses, sports and entertainment as a clean and pollution-free DC power supply.
Features
High Energy density, long cycle life, reliable safety
High lifespan: Four thousand cycles and more
Ultra safe Lithium Iron Phosphate chemistry(no thermal run-away, no fire or explosion risks)
No lead, no heavy metal, no toxic element
Excellent temperature robustness(-20℃ up to +60℃ )
Flexbile deployment: combining in parallel and series
Constant power during discharge(very low internal resistance)
Energy efficiency>96%
Very low self discharge(<3% per month)
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 51.2V | Terminal Type | M8 | |
| Nominal Capacity | 200Ah | Weight | 80kg | |
| Nominal Energy | 10.24KWh | Case Dimension(L*W*H) | 705*305*260mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @40A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | NO | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 200A | Max Charge Current | 200A | |
| Peak Current | 700A | Recommended Charge Current | 40A - 100A | |
| Discharge pulse current | 800±50A (31±10ms) | End of Charge voltage | 57.6V±0.2V | |
| BMS Low Voltge Cut-off | 40V | End of discharge voltage | 40V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
