| Brand Name: | LEADYO |
| Model Number: | LP12V050 |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | UN3480 Standard Export |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |

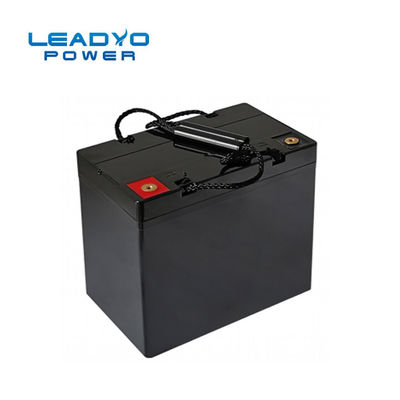

12v 50ah lithium ion battery Rechargeable LiFePO4 Batteries with bms
Lithium Iron Phosphate Battery 12.8V 50Ah
Nominal Voltage 12.8V
Nominal Capacity 50 Ah
Capacity @ 20A 300 min
Energy 640 Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Balancing function
With Smart BMS has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.
Applications :
♦Solar and wind energy storage system
♦EPS and UPS battery backup
♦Signal system , emergency lighting system , security system
♦Telecommunication Equipment
♦Power source for portable devices or tools
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | M6 | |
| Nominal Capacity | 50Ah | Weight | 6.8kg | |
| Nominal Energy | 640Wh | Case Dimension(L*W*H) | 197*166*168mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @25A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | 4PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 50A | Max Charge Current | 50A | |
| Peak Current | 150A | Recommended Charge Current | 10A - 20A | |
| Discharge pulse current | 180±30A (31±10ms) | End of Charge voltage | 14.4V±0.2V | |
| BMS Low Voltge Cut-off | 10V | End of discharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
RFQ
Q1: What is the biggest difference between your battery and other suppliers?
A1: Over 10 Years production experience with this model battery; Battery made of UL UN38.3 MSDS certificated battery cell, PCB structure Battery module, Build in Smart BMS for protection;
Q2: What's the Lead time of the battery?
A2: 3-10 work days; Specific Lead time depend on the quantity and requirement
Q3. Is this product safe?
A3: Passed the overcharge, over discharge, over temperature, short circuit, acupuncture and other safety tests, no fire, no
explosion at any circumstance;
|
