Shenzhen Leadyo Technology Co., Ltd.
Lithium Battery One-Stop Solution Manufacturer I 15 Years Experience
| Place of Origin: | China |
|---|---|
| Brand Name: | LEADYO |
| Certification: | UN38.3, CE,MSDS,UKCA |
| Model Number: | LP36V010 |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | UN3480 Standard Export |
| Delivery Time: | 15-45 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |
| Supply Ability: | 60Mwh |
| Nominal Voltage: | 36V | Nominal Capacity: | 10Ah |
|---|---|---|---|
| Weight: | 4.2kg | Dimension: | 195*133*171 |
| Current: | 10A | Pluse Current: | 10A |
| Terminal: | M6 | ||
| High Light: | 10Ah 36V Lifepo4 Battery,Rechargeable 36V Lifepo4 Battery,36V 10ah Lifepo4 Battery |
||

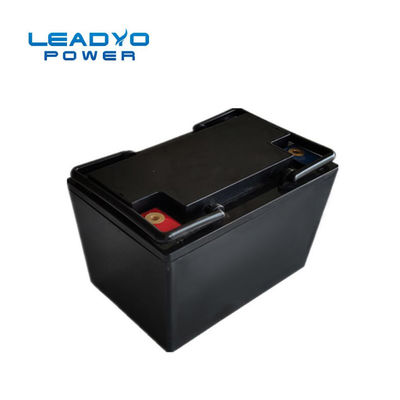

36V 10Ah Li-Ion Rechargeable Batteries for lead-acid batteries replacement
Lithium Iron Phosphate Battery 36V 10Ah
Nominal Voltage 38.4V
Nominal Capacity 10 Ah
Capacity @ 2A 300 min
Energy 374 Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Balancing function
With Smart BMS has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.
Features:
1. Maintenance free. easy installation and capacity expansion.
2. Long cycle life. 3000 Cycle Times 80% DOD
3. Bulit-in smart BMS with full safety protection and communication functions.
4. Wide working temperature range and high reliability.
5. Multiple battery units can be connected in parallel,suitable for high energy storage applications.
6. Compatible with various charge controllers and inverters.
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 38.4V | Terminal Type | M6 | |
| Nominal Capacity | 10Ah | Weight | 4.2kg | |
| Nominal Energy | 384Wh | Case Dimension(L*W*H) | 195*133*171 | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @2A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series and Parallel | NO | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 10A | Max Charge Current | 10A | |
| Peak Current | 20A | Recommended Charge Current | 2A - 5A | |
| Discharge pulse current | 30±5A (31±10ms) | End of Charge voltage | 43.2V±0.2V | |
| BMS Low Voltge Cut-off | 30V (2.0V±0.05v) pc) | Balancing current | Auto start | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
FAQ
2.How to get a quote?
Please contact with us sales5@leadyo-battery.com or Phone/whatsapp:+ 8618825284421
3. How about the lead time?
samples 5-10days, bulk order 3-5 weeks
4. How long of the shipping time?
It always needs 3-10 days by express such as DHL and UPS, 20-30 days by sea.
5. Can you produce the order with the customer's brand?
Yes, of course. OEM & ODM service is warmly provided.
