Place of Origin: | China |
---|---|
Brand Name: | LEADYO |
Certification: | CE,MSDS |
Model Number: | LP48V025 |
Minimum Order Quantity: | 1 |
Price: | Negotiable |
Packaging Details: | standard export carton |
Delivery Time: | 1-2weeks for samples; 3-4weeks for mass production |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |
Supply Ability: | 60Mwh |
Nominal Voltage: | 48V | Nominal Capacity: | 25Ah |
---|---|---|---|
Weight: | 13kg | Dimension: | 330*175*215mm |
Max Charge Current: | 25A | Max Discharge Current: | 25A |
Terminal: | M8 | ||
High Light: | BMS 48V Lifepo4 Battery,onger Lifetime 48V Lifepo4 Battery,48v 25ah Lifepo4 Battery |

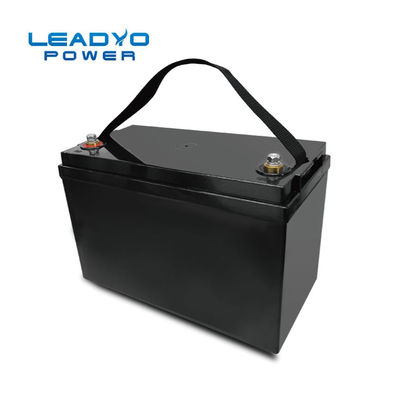

Lithium Iron Phosphate 48v 25ah lifepo4 battery with smart BMS
Lithium Iron Phosphate Battery 51.2V 25Ah
Nominal Voltage 51.2V
Nominal Capacity 25 Ah
Capacity @ 5A 300 min
Energy 1280 Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Balancing function
With Smart BMS has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.
Features:
ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
Nominal Voltage | 51.2V | Terminal Type | M8 | |
Nominal Capacity | 25Ah | Weight | 13kg | |
Nominal Energy | 1280Wh | Case Dimension(L*W*H) | 330*175*215mm | |
Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
Capacity | @5A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
Maximum In Series | NO | BMS:low voltage,high voltage,over temperature, | ||
Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
MAX Continuous Discharge Current | 25A | Max Charge Current | 25A | |
Peak Current | 50A | Recommended Charge Current | 5A - 13A | |
Discharge pulse curret | 80±20A (31±10ms) | End of Charge voltage | 57.6V±0.2V | |
BMS Low Voltge Cut-off | 40V | End of discharge voltage | 40V | |
Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
Discharge Temperature | -20~+65℃ | Certifications | CE for Battery Pack | |
Charge Temperature | -20~+45℃ | UL1642 & IEC62133 for cells | ||
Storage Temperature Range | -20~+45℃ | |||
BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
Battery High Temperature Protection | 60℃ |
