Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,UKCA
Model Number: LP48V020
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 15-45 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Nominal Voltage: |
51.2V |
Nominal Capacity: |
20Ah |
Weight: |
10kg |
Dimension: |
260*168*209mm |
Max Charge Current: |
25A |
Max Discharge Current: |
25A |
CaseABS Case: |
ABS |
Ip Rating: |
IP66 |
Terminal: |
M8 |
Nominal Voltage: |
51.2V |
Nominal Capacity: |
20Ah |
Weight: |
10kg |
Dimension: |
260*168*209mm |
Max Charge Current: |
25A |
Max Discharge Current: |
25A |
CaseABS Case: |
ABS |
Ip Rating: |
IP66 |
Terminal: |
M8 |

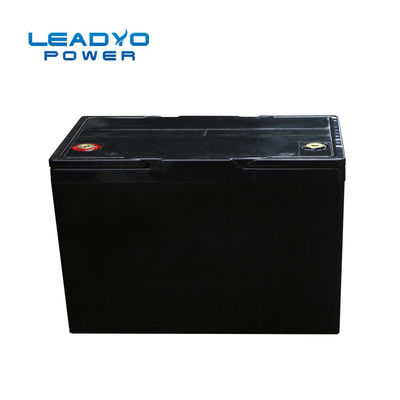

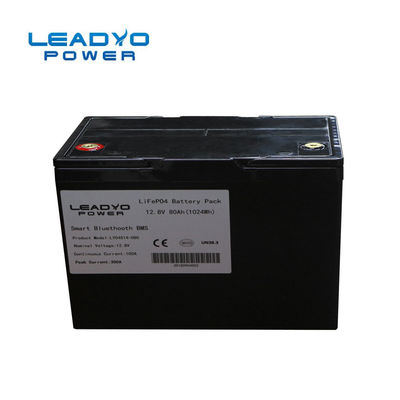

Customized 48v 20ah lithium battery pack with RS485 RS232 communication
48v 20ah Lithium Battery For Bike, Golf Cart it can with SMbus, I2C ,RS232 ,RS235 or Bluetooth
We have successfully designed and produce mode than 2000 types of professional BMS/PCM/ CMB/PCB to 1-32S Battery pack, including over 100 types of BMS with SMBUS ,I2C,bluetooth,RS485, RS232,HDQ...,these high quality products are widely applied to all kinds of battery pack.
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 51.2V | Terminal Type | M8 | |
| Nominal Capacity | 20Ah | Weight | 10kg | |
| Nominal Energy | 1024Wh | Case Dimension(L*W*H) | 260*168*209mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @4A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | NO | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 20A | Max Charge Current | 20A | |
| Peak Current | 20A | Recommended Charge Current | 4A - 10A | |
| Discharge pulse curret | 50±10A (31±10ms) | End of Charge voltage | 57.6V±0.2V | |
| BMS Low Voltge Cut-off | 40V | End of discharge voltage | 40V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
