| Brand Name: | LEADYO |
| Model Number: | LP12V050-LW |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | UN3480 Standard Export |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |

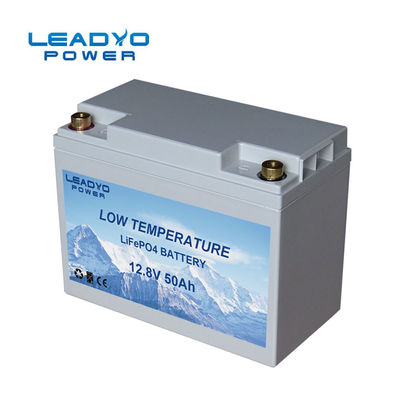

Auto Heating Element Bluetooth Lithium Battery LiFePO4 12V 50Ah
Lithium Iron Phosphate Battery 12V 50Ah
Nominal Voltage 12.8V
Nominal Capacity 50 Ah
Capacity @ 10A 300 min
Energy 640Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Balancing function
With Smart BMS has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.
Features:
We have self-heating battery selling well in some cold winter country. such as Norway,Switzerland,Germany,Canada and American
Start heating : 0°C
Stop heating +5°C
heating current :100W/7A
Heating on charging stage
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | M6 | |
| Nominal Capacity | 50Ah | Weight | 7kg | |
| Nominal Energy | 640Wh | Case Dimension(L*W*H) | 260*133*205mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @10A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | 4PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 100A | Max Charge Current | 100A | |
| Peak Current | 300A | Recommended Charge Current | 10A - 25A | |
| Discharge pulse current | 500±50A (31±10ms) | End of Charge voltage | 14.4V±0.2V | |
| BMS Low Voltge Cut-off | 10V | End of discharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
FAQ
1. A: How many samples available?
Q: 2-10pcs are available( we focus on wholesale business, customers could buy samples to test battery's performance, if our samples prove good quality, then we could discuss further cooperation, ps: we don't sell batteries for self-use).
2. A: Could I buy battery with special size?
Q: yes, we could open a new mould for you, .
3.A: What's your guarantee for battery quality?
Q: All our batteries enjoy 2 year warrenty after shipping.
|
