Shenzhen Leadyo Technology Co., Ltd.
Lithium Battery One-Stop Solution Manufacturer I 15 Years Experience
| Place of Origin: | China |
|---|---|
| Brand Name: | LEADYO |
| Certification: | UN38.3, CE,MSDS,UKCA |
| Model Number: | LY8S-10 |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | UN3480 Standard Export |
| Delivery Time: | 15-45 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |
| Supply Ability: | 60Mwh |
| Nominal Voltage: | 24V | Nominal Capacity: | 10Ah |
|---|---|---|---|
| Weight: | 2.5kg | Dimension: | Customized |
| Max Charge Current: | 10A | Max Discharge Current: | 10A |
| Case: | ABS/PVC/Epoxy | Terminal: | Anderson Etc |
| Smart: | With RS485 | ||
| High Light: | 10Ah Lithium Ion Iron Phosphate Battery,24V Lithium Ion Iron Phosphate Battery |
||

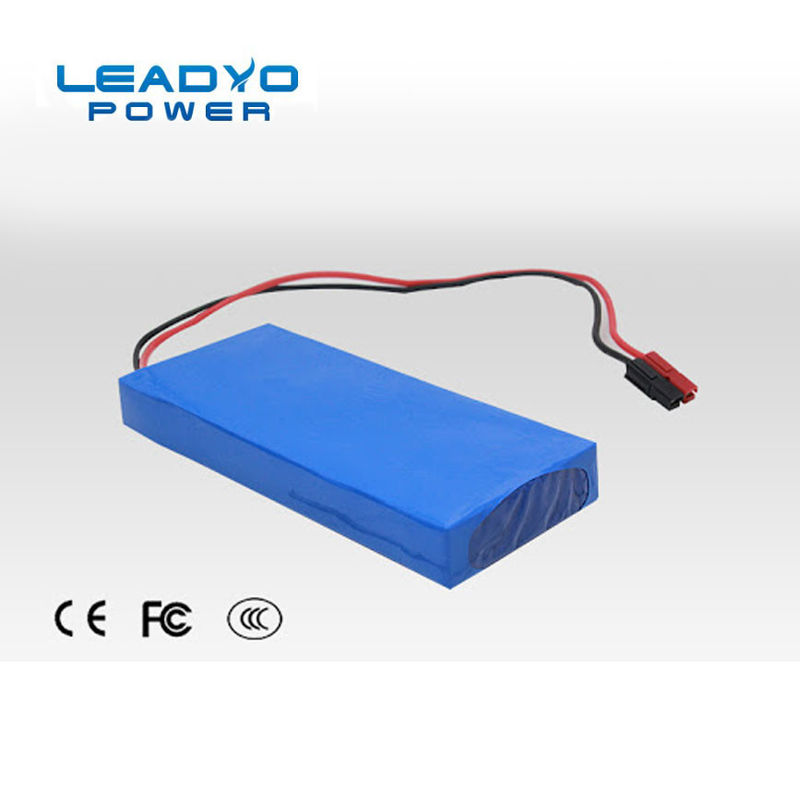

24V 48V 10Ah robot lithium ion iron phosphate battery with RS485
We are industry leaders in the engineering and manufacturing of custom battery systems, with a focus on lithium battery packs. Our battery pack energy solutions optimize performance, size, working life, and cost, giving our customers a unique competitive edge.
Request a quote on custom battery packs and assemblies, or contact SmarTEC to learn more.
Smart BMS can be with Bluetooth,SMBus,HDQ,I2C,RS232,RS485 commnication.
Can make series up to 48V,parallel no limit.
All the BMS and PCM has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.
Built in heat sink With powerful cooling performance,
Support high current 500-800A Short circuit protection
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 25.6V | Terminal Type | anderson or others | |
| Nominal Capacity | 10Ah | Weight | 2.5kg | |
| Nominal Energy | 256Wh | Case Dimension(L*W*H) | Custom | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS/PVC | |
| Capacity | @2A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4/NMC | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | 2 series | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 10A | Max Charge Current | 20A | |
| Peak Current | 20A | Recommended Charge Current | 4-10A | |
| Discharge pulse current | 30±5A (31±10ms) | End of Charge voltage | 28.8V | |
| BMS Low Voltge Cut-off | 20V (2.0V±0.05v) pc) | End of discharge voltage | 20V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | Custom | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
