Product Details
Place of Origin: China
Brand Name: LEADYO
Certification: UN38.3, CE,MSDS,UKCA
Model Number: 30Ah
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: UN3480 Standard Export
Delivery Time: 15-45 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability: 60Mwh
Nominal Voltage: |
2.3V |
Nominal Capacity: |
30Ah |
Cell Type / Chemistry: |
Lithium Titanate Oxid Battery Cell |
Weight: |
1.25kg |
Dimension: |
160(202)*66mm |
Max Charge Current: |
6C |
Max Discharge Current: |
6C |
Nominal Voltage: |
2.3V |
Nominal Capacity: |
30Ah |
Cell Type / Chemistry: |
Lithium Titanate Oxid Battery Cell |
Weight: |
1.25kg |
Dimension: |
160(202)*66mm |
Max Charge Current: |
6C |
Max Discharge Current: |
6C |

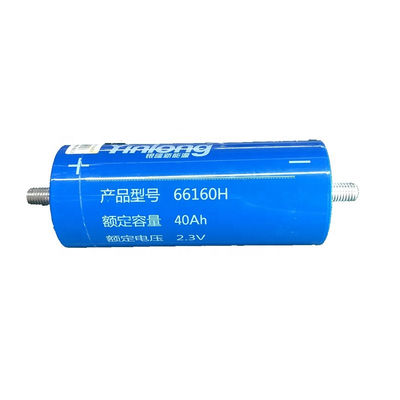

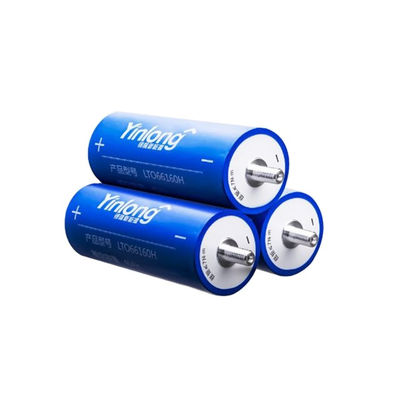

YINGLONG 66160 Lithium Titanate LTO 2.3v 30ah Cylindrical cells
Note:
1.Yinglong Lto Cell 66160h 2.3V 30ah Lithium Titanate Battery
2.100% pre-tested before shippment.
3,Full certificates, UN38.3+MSDS
4,Fast shippment,usually send out within 3-4 days.
If need other capacity cells please contatc with leadyo Team thanks.
1 | Norminal Voltage | 2.3V |
2 | Norminal capacity | 30Ah |
3 | Resistance |
≤1.0mΩ
|
4 |
Max charge voltage |
2.9V |
5 | Standard charge current | 1C |
6 | Max continuous charge current | 6C |
7 | Discharge release voltage | 1.5V |
8 | Max discharge current | 6C (peak) |
9 | Charge temperature | 0℃~45℃ |
10 | discharge temperature | -20℃~55℃ |
11 | Weight | 1.25KG |
12 | Size | 160(202)*66mm |
12 | Cycles |
>25000 cycles @1C 100% DOD 25℃ |
